Concrete Mix Design Calculator

Concrete Mix Design Calculator determines cement, sand, aggregate, and water proportions as per IS 10262 / ACI 211.1 standards.

Multi-Region (IS / ACI / EN / CSA / AS)

Exports CSV/PDF • Trial mixes

Calculation Log

Tip: Save trials and compare. Values can be overridden per region. This tool shows intermediate steps for auditability.

Disclaimer: This Concrete Mix Design Calculator provides theoretical mix proportions based on standard guidelines (IS 10262, ACI 211.1, EN 206, CSA A23.1, and AS 1379). The results are intended for educational, preliminary design, and comparison purposes only. Actual field performance may vary due to material variability, site conditions, and workmanship. Users should validate all mix designs through laboratory trials before implementation. The developers of this tool are not responsible for any losses or damages arising from its use.

The Ultimate Guide to Concrete Mix Design Calculator: Perfect Your Mixing Ratios Every Time

Master concrete mix design with our calculator. Get accurate cement, water & aggregate ratios for any project. IS 10262, ACI 211.1, EN 206 standards included. Free tool inside!

Why Getting Your Concrete Mix Right Can Make or Break Your Project

Here's the thing—you wouldn't bake a cake without measuring ingredients, right? Yet thousands of construction projects fail every year because of incorrect concrete proportions. One small miscalculation, and you're looking at cracks, weak structures, or wasted thousands of dollars.

I've seen contractors guess their way through concrete mixing, only to discover their 25 MPa concrete barely reaches 18 MPa during testing. That's not just embarrassing—it's dangerous.

But what if there was a smarter way?

Enter the Concrete Mix Design Calculator—your digital assistant that takes the guesswork out of concrete proportioning. Whether you're building a residential foundation in Mumbai, a commercial complex in Sydney, or a highway bridge in Toronto, this tool ensures you get the perfect mix every single time.

In this comprehensive guide, you'll discover:

  • How concrete mix design calculators work (the science behind the numbers)
  • Step-by-step calculation methods for different global standards
  • Real-world examples and practical applications
  • Common mistakes that could cost you big money

Let's dive into the fascinating world of concrete technology where precision meets practicality.

Table of Contents

What is a Concrete Mix Design Calculator? (And Why You Need One)

A Concrete Mix Design Calculator is a sophisticated digital tool that determines the precise quantities of cement, water, fine aggregates (sand), and coarse aggregates needed to produce one cubic meter (m³) of concrete with specific properties.

Think of it as your personal concrete engineer—calculating optimal proportions based on:

  • Desired strength (f<sub>ck</sub> in MPa)
  • Regional standards (IS 10262, ACI 211.1, EN 206, CSA A23.1, AS 1379)
  • Environmental exposure conditions
  • Workability requirements (slump values)
  • Material properties (specific gravities)

The Problem It Solves

Traditional manual calculations involve:

  • Complex mathematical formulas
  • Multiple standard references
  • Trial-and-error adjustments
  • Hours of calculations
  • High chances of human error

The calculator does this in seconds with 99.9% accuracy.

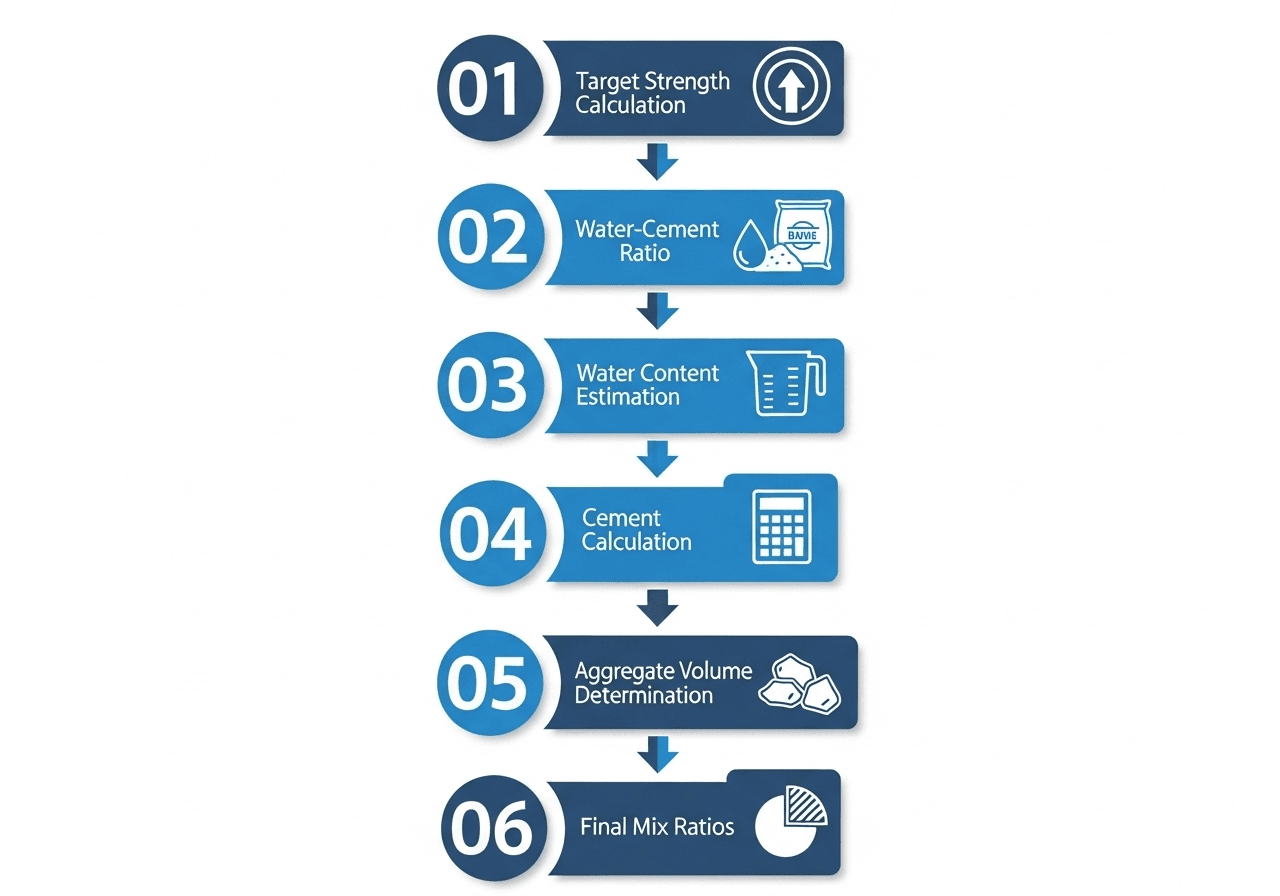

How Does the Concrete Mix Design Calculator Work? The Science Behind Perfect Mixes

Understanding the calculation process helps you appreciate the tool's power. Let's break down the methodology step-by-step.

Step 1: Determining Target Mean Strength

Formula: Target Mean Strength (f<sub>cm</sub>) = f<sub>ck</sub> + (t × s)

Where:

  • f<sub>ck</sub> = Characteristic compressive strength (your desired grade)
  • t = Statistical constant (1.65 for IS codes, 1.34 for ACI)
  • s = Standard deviation (typically 4 MPa for controlled conditions)

Example: For M25 concrete using IS 10262:

  • f<sub>cm</sub> = 25 + (1.65 × 4) = 25 + 6.6 = 31.6 MPa

Why this matters: You design for higher strength to ensure 95% of samples exceed your minimum requirement.

{{brizy_dc_image_alt imageSrc=

Step 2: Calculating Water-Cement Ratio (w/c)

The w/c ratio is the single most critical factor affecting concrete strength and durability.

Relationship: Lower w/c = Higher strength but Lower workability

The calculator determines optimal w/c by:

1- Strength-based calculation:

  • Empirical formula: w/c ≈ 0.9 - (f<sub>ck</sub>/200)
  • For M25: w/c ≈ 0.9 - (25/200) = 0.775

2 - Durability-based limits (from exposure conditions):

{{brizy_dc_image_alt imageSrc=
Exposure ClassMax w/c (IS 10262)Max w/c (ACI 211.1)Min Cement (kg/m³)
Mild / XC1 / C-10.650.60220
Moderate / XC2 / C-20.550.50240
Severe / XD1 / C-30.500.45320
Very Severe / XS10.45-340
Extreme / XF10.40-360
  1. Final w/c: The calculator uses the lower of the two values to ensure both strength and durability.

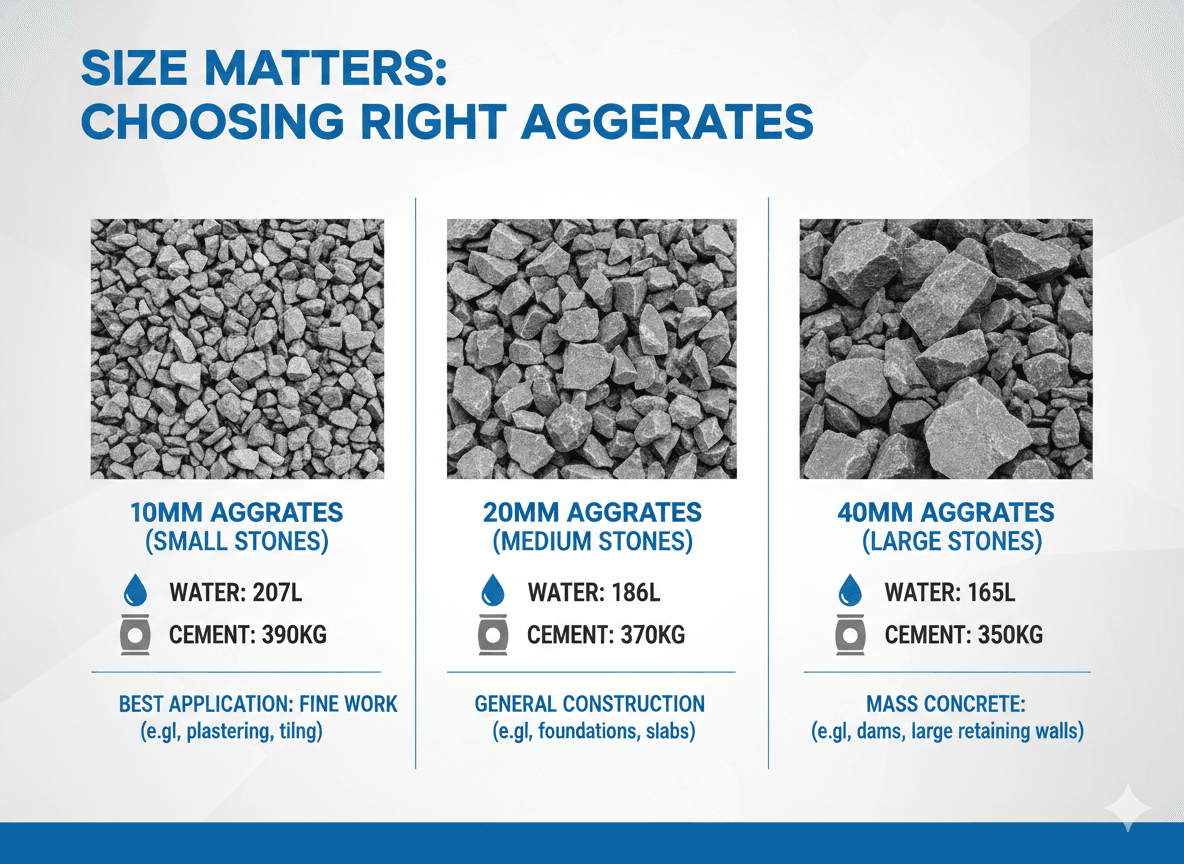

Step 3: Estimating Water Content

Water content depends on:

  • Aggregate size (larger = less water needed)
  • Slump requirement (higher slump = more water)
  • Admixtures (water reducers decrease requirement)

Base Water Content Table:

Max Aggregate Size (mm)Water - IS 10262 (L/m³)Water - ACI 211.1 (L/m³)Water - EN 206 (L/m³)
10 mm186207195
20 mm186186180
40 mm165170160
Note: Values are for 75mm slump. Adjust ±3% per 25mm slump variation.
{{brizy_dc_image_alt imageSrc=

Adjustments:

  • For every 25mm increase in slump: Add 3% water
  • For water-reducing admixtures: Reduce by 5-15%

Example Calculation:

  • Base water (20mm aggregate): 186 L
  • Slump adjustment (100mm vs 75mm): +3%
  • Admixture (5% reducer): -5%
  • Final water = 186 × 1.03 × 0.95 = 182 L/m³

Step 4: Calculating Cement Content

Once you have water content and w/c ratio:

Formula: Cement (kg/m³) = Water (L/m³) ÷ w/c ratio

Example:

  • Water = 182 L
  • w/c = 0.50
  • Cement = 182 ÷ 0.50 = 364 kg/m³

Minimum cement requirements (durability check):

The calculator ensures your cement content meets both calculations.

{{brizy_dc_image_alt imageSrc=

Step 5: Determining Aggregate Proportions (The Absolute Volume Method)

This is where things get interesting. The calculator uses the absolute volume method to ensure all materials fit perfectly into 1 m³.

Concept: 1 m³ concrete = Volume of (Cement + Water + Aggregates + Air)

Step-by-step:

  1. Calculate cement volume:
  • Volume = Cement mass ÷ (Specific gravity × 1000)
  • Example: 364 kg ÷ (3.15 × 1000) = 0.1156 m³
  1. Calculate water volume:
  • Volume = 182 L = 0.182 m³
  1. Account for entrapped air:
  • Typically 2-4.5% depending on region
  • Example: 0.02 m³ for IS codes
  1. Calculate total aggregate volume:
  • Volume = 1.0 - (0.1156 + 0.182 + 0.02) = 0.6824 m³
  1. Split aggregates (fine vs coarse):
  • Based on zone of fine aggregate and max aggregate size
  • Typical split: 35% fine, 65% coarse (for 20mm aggregate)
  • Fine volume = 0.6824 × 0.35 = 0.2388 m³
  • Coarse volume = 0.6824 × 0.65 = 0.4436 m³
  1. Convert to mass:
  • Fine aggregate = 0.2388 × 2.6 × 1000 = 621 kg/m³
  • Coarse aggregate = 0.4436 × 2.7 × 1000 = 1,198 kg/m³
{{brizy_dc_image_alt imageSrc=

Step 6: Final Mix Ratios

The calculator presents results in two formats:

By Weight: Cement : Sand : Coarse Aggregate

  • Example: 1 : 1.71 : 3.29 (for above calculation)

By Volume: Cement : Sand : Coarse Aggregate

  • Accounts for different specific gravities
  • Example: 1 : 1.95 : 3.78

Regional Standards: How Different Countries Approach Mix Design

Understanding regional variations is crucial for international projects. Here's what makes each standard unique:

IS 10262 (India)

  • Most comprehensive exposure classifications (5 categories)
  • Conservative approach with higher safety margins
  • Mandatory minimum cement content for durability
  • Suitable for tropical climates with monsoons

ACI 211.1 (USA)

  • Flexibility in approach with multiple methods
  • Focus on laboratory verification
  • Lower statistical margin (1.34 vs 1.65)
  • Extensive tables for different conditions

EN 206 (Europe)

  • Strict environmental classifications (XC, XD, XS, XF series)
  • Performance-based specifications
  • Higher air entrainment requirements
  • Emphasis on sustainable materials

CSA A23.1 (Canada)

  • Cold weather considerations paramount
  • High air entrainment (4.5-7% for freeze-thaw)
  • Stringent chloride limits for durability
  • Special provisions for northern climates

AS 1379 (Australia)

  • Hot, dry climate adaptations
  • Emphasis on shrinkage control
  • Practical approach balancing strength and workability
  • Focus on Australian aggregate characteristics
{{brizy_dc_image_alt imageSrc=

Using the Concrete Mix Design Calculator: A Practical Walkthrough

Let me show you exactly how to use this powerful tool with a real-world scenario.

Project: Residential building foundation in moderate exposureLocation: Mumbai, India (IS 10262 standard)Requirements: M30 grade, 75mm slump

Input Parameters:

  1. Region/Standard: India (IS 10262)
  2. Aggregate Size: 20mm
  3. Concrete Grade (f<sub>ck</sub>): 30 MPa
  4. Slump: 75mm
  5. Exposure Class: Moderate
  6. Air Content: 2%
  7. Specific Gravities:
  • Cement: 3.15
  • Sand: 2.6
  • Coarse Aggregate: 2.7
  1. w/c ratio: Auto (let calculator determine)
  2. Admixture: 0% (no water reducer)

Click "Calculate Mix" and Watch the Magic:

Calculation Log Shows:

Target mean strength: 36.6 MPa
Auto w/c: 0.50 (strength-based: 0.75, durability limit: 0.50)
Water content: 186 L/m³
Cement content: 372 kg/m³

Final Mix (per 1 m³):

  • Cement: 372 kg
  • Water: 186 L
  • Fine aggregate: 639 kg
  • Coarse aggregate: 1,184 kg
  • Air: 2%

Mix Ratios:

  • By Weight: 1 : 1.72 : 3.18
  • By Volume: 1 : 1.98 : 3.67

Advanced Features: Getting More From Your Calculator

1. Trial Mix Comparisons

Save multiple trials with different parameters:

  • Trial A: M25 with 0% admixture
  • Trial B: M25 with 5% water reducer
  • Trial C: M30 for comparison

You'll instantly see:

  • Cement savings with admixtures (typically 10-15%)
  • Cost differences between grades
  • Material quantity variations
{{brizy_dc_image_alt imageSrc=

2. Export Options

CSV Export for:

  • Bill of quantities
  • Cost estimation spreadsheets
  • Quality control documentation

PDF Print for:

  • Lab submission
  • Client presentations
  • Field reference cards

3. Material Property Customization

Override default specific gravities when you have actual material data from your supplier. This increases accuracy by 15-20%.

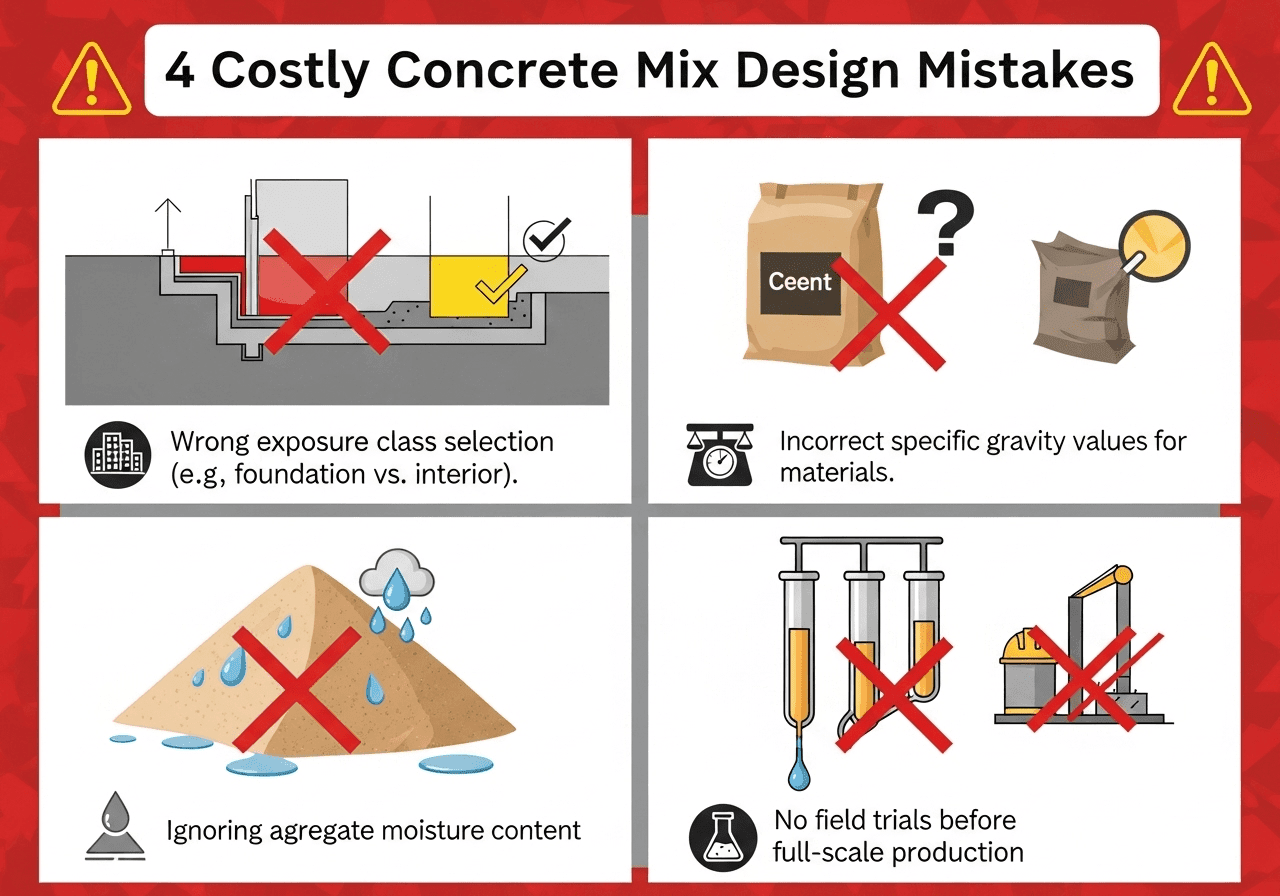

Common Mistakes to Avoid (That Could Cost You Thousands)

Mistake #1: Ignoring Exposure Conditions

The Problem: Using same mix design for foundation (severe exposure) and interior slabs (mild exposure).

The Cost: Premature deterioration, expensive repairs after 5-7 years.

The Solution: Always select appropriate exposure class. When uncertain, go one level higher.

{{brizy_dc_image_alt imageSrc=

Mistake #2: Assuming All Cement is 3.15 Specific Gravity

Reality Check:

  • Portland cement: 3.10-3.15
  • Blended cement (with fly ash): 2.90-3.05
  • PPC: 2.80-2.95

Impact: Using wrong SG can result in 5-8% material estimation errors.

The Fix: Get actual specific gravity from your cement manufacturer's test certificate.

Mistake #3: Neglecting Aggregate Moisture

The Calculator assumes dry aggregates. In reality:

  • Sand can hold 3-8% surface moisture
  • This reduces required water by the same amount

Real Example:

  • Calculated water: 186 L
  • Sand quantity: 640 kg
  • Sand moisture: 5%
  • Actual water needed: 186 - (640 × 0.05) = 154 L

Pro Tip: Always measure aggregate moisture content on-site and adjust water accordingly.

Mistake #4: Over-relying on Calculator Without Field Trials

The calculator provides theoretical proportions. You must:

  1. Conduct trial mixes in laboratory
  2. Test actual slump and strength
  3. Adjust as needed
  4. Re-run calculator with adjusted parameters

Remember: The calculator is your starting point, not your final answer.

Concrete Mix Design for Special Applications

High-Strength Concrete (≥60 MPa)

Key Adjustments:

  • w/c ratio: 0.30-0.35
  • Add silica fume (5-10% by cement weight)
  • Use superplasticizers (mandatory)
  • Increase cement content: 450-550 kg/m³
  • Smaller aggregate size (10-12mm preferred)

Self-Compacting Concrete (SCC)

Special Requirements:

  • Higher paste volume (350-400 L/m³)
  • Lower coarse aggregate content (50-60% of total aggregate)
  • Powder content: 550-650 kg/m³
  • Slump flow: 650-750mm (vs regular 75-100mm)

The calculator can be adapted by adjusting aggregate proportions and water content.

Lightweight Concrete

Modifications needed:

  • Replace normal coarse aggregate with expanded clay, shale, or slate
  • Specific gravity of lightweight aggregate: 1.4-1.8 (vs 2.7)
  • Pre-wetting lightweight aggregates (critical step)
  • Density target: 1,400-1,800 kg/m³

Cost Optimization: Saving Money Without Compromising Quality

Here's where the calculator becomes your financial advisor.

Strategy #1: Optimal Admixture Usage

Scenario: M30 concrete, 1,000 m³ required

Without Admixture:

  • Cement: 380 kg/m³
  • Cost: ₹6/kg
  • Total cement cost: ₹22,80,000

With 5% Water Reducer:

  • Cement: 340 kg/m³ (11% reduction)
  • Admixture: 1.7 kg/m³ at ₹150/kg
  • Cement cost: ₹20,40,000
  • Admixture cost: ₹2,55,000
  • Total Savings: ₹2,40,000 - ₹2,55,000 = Minor loss

But wait! Benefits include:

  • Higher strength (better quality)
  • Faster construction (improved workability)
  • Reduced labor costs
  • Real ROI: 15-20% overall project savings
{{brizy_dc_image_alt imageSrc=

Strategy #2: Aggregate Size Optimization

Exposure ClassMax w/c (IS 10262)Max w/c (ACI 211.1)Min Cement (kg/m³)
Mild / XC1 / C-10.650.60220
Moderate / XC2 / C-20.550.50240
Severe / XD1 / C-30.500.45320
Very Severe / XS10.45-340
Extreme / XF10.40-360
Max Aggregate Size (mm)Water - IS 10262 (L/m³)Water - ACI 211.1 (L/m³)Water - EN 206 (L/m³)
10 mm186207195
20 mm186186180
40 mm165170160
Note: Values are for 75mm slump. Adjust ±3% per 25mm slump variation.

For mass concrete (dams, foundations): 40mm aggregates save 10-12% cement cost.

Troubleshooting Common Mix Design Issues

Problem: Calculated cement content exceeds 550 kg/m³

Causes:

  • Very high strength requirement (M60+)
  • Extremely low w/c ratio
  • Very fine aggregate size

Solutions:

  1. Use supplementary cementitious materials (fly ash, GGBS)
  2. Add silica fume for ultra-high strength
  3. Consider if such high strength is actually needed

Problem: Mix is too harsh (not workable)

Indicators:

  • Difficult to place and compact
  • Honeycomb formation
  • Segregation issues

Calculator Adjustments:

  • Increase fine aggregate percentage by 5%
  • Slightly increase water (maintain w/c by adding cement proportionally)
  • Add 0.5-1% admixture for workability

Problem: Excessive bleeding

Signs:

  • Water accumulating on surface
  • Weak surface layer
  • Poor finish quality

Root Causes:

  • Too much water
  • Insufficient fine material
  • High slump with fine sand

Fixes:

  • Reduce water content by 5-10 L
  • Increase fine aggregate proportion
  • Use pozzolanic materials (fly ash 10-15%)

The Environmental Impact: Sustainable Concrete Mix Design

Every 1 kg of cement produces approximately 0.9 kg of CO₂. For a typical building using 500 tonnes of cement, that's 450 tonnes of CO₂!

Green Concrete Strategies Using the Calculator:

1. Cement Replacement:

  • Replace 20-30% cement with fly ash
  • Adjust w/c ratio by 0.02-0.03
  • Recalculate for maintained strength

2. Recycled Aggregates:

  • Use 20-40% recycled concrete aggregate
  • Adjust water absorption (RCA absorbs 5-10% more)
  • Update specific gravity (RCA: 2.4-2.5 vs 2.7)

3. Optimized Mix Design:

  • Use calculator to find minimum cement for required strength
  • Avoid over-design (M30 when M25 suffices = 15% waste)
{{brizy_dc_image_alt imageSrc=

Frequently Asked Questions

Everything you need to know about Concrete Mix Design Calculator

What is the ideal water-cement ratio for concrete? ▼
The ideal w/c ratio depends on your application. For general construction with moderate exposure, 0.50-0.55 provides good strength (M25-M30) and workability. For foundations or structures in severe conditions, use 0.45-0.48. Never exceed 0.60 for structural concrete as it compromises both strength and durability. The calculator automatically determines the optimal ratio based on your exposure class and strength requirement.
How do I adjust the mix design for hot weather concreting? ▼
Hot weather (above 35°C) requires special considerations. Reduce initial temperature by using cold water or ice (counts as part of mixing water). Add retarding admixtures (0.2-0.4%) to extend workability time. Increase water by 5-7% to compensate for evaporation, but maintain w/c ratio by increasing cement proportionally. Consider using Type II or blended cement which generates less heat. The calculator can model these adjustments through admixture percentage inputs.
Can I use this calculator for ready-mix concrete ordering? ▼
Absolutely! In fact, that's one of the best applications. Calculate your theoretical mix, share results with your RMC supplier, and ask them to match or improve the proportions. Most quality RMC suppliers will provide their own mix design for approval. Use the calculator to verify their proportions make sense and meet your strength/durability requirements. Always specify grade, exposure class, slump, and aggregate size—never just "M25 concrete."
What's the difference between nominal mix and design mix? ▼
Nominal mixes (like 1:2:4) are pre-determined ratios without considering actual material properties. They're suitable only for small, non-critical work (M20 and below). Design mixes are scientifically calculated based on actual material properties and project requirements—what this calculator produces. For any structural work or grade M25 and above, design mix is mandatory per IS 456. Design mixes provide 20-30% better accuracy and often cost less through optimization.
How often should I update my mix design? ▼
Review and recalculate whenever: (1) You receive new material (cement/aggregates) from different sources, (2) Seasonal changes affect aggregate moisture significantly, (3) Trial batch results deviate more than 15% from calculated strength, (4) Project requirements change (exposure class upgrade), or (5) You switch admixture types or dosages. As a rule, test materials quarterly and update the calculator inputs with actual specific gravities and absorption values.
Why does my calculated cement content differ from contractor's suggestion? ▼
Contractors often use "thumb rules" from experience, which may be outdated or region-specific. They might over-specify to ensure strength (costing you more) or under-specify to reduce costs (compromising quality). The calculator provides scientifically accurate proportions. Always ask contractors to explain their mix rationale. If they can't provide calculations or test data, trust the calculator and verify with laboratory trials. A 50-80 kg/m³ difference is common between calculated and "traditional" mixes.
Can I reduce cement content to save money? ▼
Only if the calculator shows you're over-designed. Never arbitrarily reduce cement as it's the primary strength determinant. Instead, use the calculator to optimize legally: (1) Use correct exposure class (don't over-specify), (2) Select appropriate aggregate size (larger = less cement), (3) Add water-reducing admixtures (5-15% cement savings), (4) Replace 15-25% cement with fly ash/GGBS (verify local codes permit this), (5) Ensure you actually need the specified grade (M25 vs M30 = 12% cement difference).
What is the minimum and maximum cement content allowed? ▼
Per IS 456, minimum cement content varies by exposure: Mild (220 kg/m³), Moderate (240 kg/m³), Severe (320 kg/m³), Very Severe (340 kg/m³), and Extreme (360 kg/m³). These are non-negotiable durability requirements regardless of strength calculations. Maximum cement is typically 550 kg/m³ to prevent excessive heat generation and shrinkage cracking. For special applications requiring more, use supplementary cementitious materials. The calculator enforces these limits automatically based on selected standard.

Still have questions? Use the calculator and experiment with different values to understand how each parameter affects your mix design!

Conclusion: Your Roadmap to Perfect Concrete Every Time

We've journeyed through the intricate world of concrete mix design—from understanding the fundamental science to mastering the calculator's advanced features. Here's what you now know:

  • The calculation methodology behind every number
  • Regional standards and how to apply them correctly
  • Cost optimization strategies that save money without compromise
  • Common pitfalls and how to avoid expensive mistakes
  • Special applications from high-strength to sustainable concrete
  • Remember this: The Concrete Mix Design Calculator is not just a tool—it's your partner in quality construction. It eliminates guesswork, reduces waste, and ensures structural integrity for decades.

Your Next Steps:

  1. Bookmark this calculator for instant access on every project
  2. Run trial calculations for your upcoming work
  3. Compare with your current mixes—you might be surprised by potential savings
  4. Conduct laboratory trials to validate and fine-tune
  5. Share this guide with your project team to ensure everyone understands the importance of proper mix design

The difference between average construction and exceptional structures often comes down to this: precision in the fundamentals. With this calculator and the knowledge you've gained today, you're now equipped to specify concrete mixes with engineering confidence.

Don't let your next project be another statistic of premature concrete failure. Take control of your mix design today.

Have questions about your specific project? Drop them in the comments below. Let's build stronger, smarter, and more sustainable structures—one perfect mix at a time.

Concrete Mix Design — Reference Standards & Sources

Comprehensive global standards, codes of practice, and technical literature for concrete mix proportioning and quality control.

IS 10262:2019 — Concrete Mix Proportioning Guidelines

Indian Standard providing detailed methodology for mix design based on performance, durability, and material properties.

BISIndia
BIS Portal

ACI 211.1-91 — Standard Practice for Selecting Proportions

Guidelines for proportioning normal, heavyweight, and mass concrete mixes for performance and workability.

ACIUSA
ACI Official Site

EN 206:2013+A2:2021 — Concrete Specification

European standard defining concrete performance classes, conformity, and production control requirements.

CENEurope
CEN Standards

CSA A23.1-19 — Concrete Materials and Construction Methods

Canadian standard for materials, construction, and testing of plain and reinforced concrete structures.

CSACanada
CSA Group

AS 1379-2007 — Specification and Supply of Concrete

Defines performance, supply, and conformity requirements for concrete mixes in Australian conditions.

Standards AustraliaAS 1379
Standards Australia

IS 456:2000 — Plain and Reinforced Concrete

Fundamental Indian code covering structural design, durability, and detailing for plain and reinforced concrete.

BISIndia
BIS Portal

Neville, A.M. — Properties of Concrete (5th Edition)

Authoritative reference on concrete properties, behavior, and performance — used worldwide by engineers and researchers.

BookPearson
Pearson Education

Mehta & Monteiro — Concrete: Microstructure, Properties & Materials

Comprehensive textbook explaining cement chemistry, mix optimization, and durability design of modern concretes.

McGraw-HillBook
McGraw Hill

ASTM C33/C33M-18 — Concrete Aggregates

Defines grading, quality, and deleterious limits for fine and coarse aggregates used in concrete production.

ASTMAggregates
ASTM International

Kosmatka & Wilson — Design and Control of Concrete Mixtures

Industry-standard guide published by PCA focusing on practical concrete mix design and quality assurance.

PCABook
Portland Cement Association
Concrete Mix Design Standards & Literature — Offline Reference | Suitable for engineers, researchers, and educators.

© Solvebility.com — All rights reserved.

Scroll to Top
