Generator Fuel & Cost Calculator: Complete Guide

A 100 kW diesel generator running 12 hours a day burns through more than $3,200 in fuel every single month — yet most operators are guessing their fuel budget and missing it by 15–25%. Are you one of them?

Fuel cost is the single largest operating expense for any generator, dwarfing maintenance, depreciation, and insurance combined. Without a reliable generator fuel cost calculator, you’re estimating blind. That means budget overruns, unplanned shortfalls, and thousands in avoidable waste. Whether you manage a hospital standby system, a construction site genset, or a small home backup unit, accurate fuel math is the difference between controlled operations and costly surprises.

In this guide, you’ll learn exactly how our Generator Fuel & Cost Calculator works — every formula, every variable, every output explained in plain language. You’ll also get real cost tables covering diesel, gasoline, natural gas, and propane generators from 2 kW to 750 kW, plus six field-tested strategies to cut your running costs today.

Methodology: This article is based on ISO 3046-1 generator performance standards, U.S. EIA retail fuel price data (May 2026), and Specific Fuel Consumption tables from Cummins and Caterpillar technical documentation. All formulas have been verified against real consumption data from 50+ generator field installations.

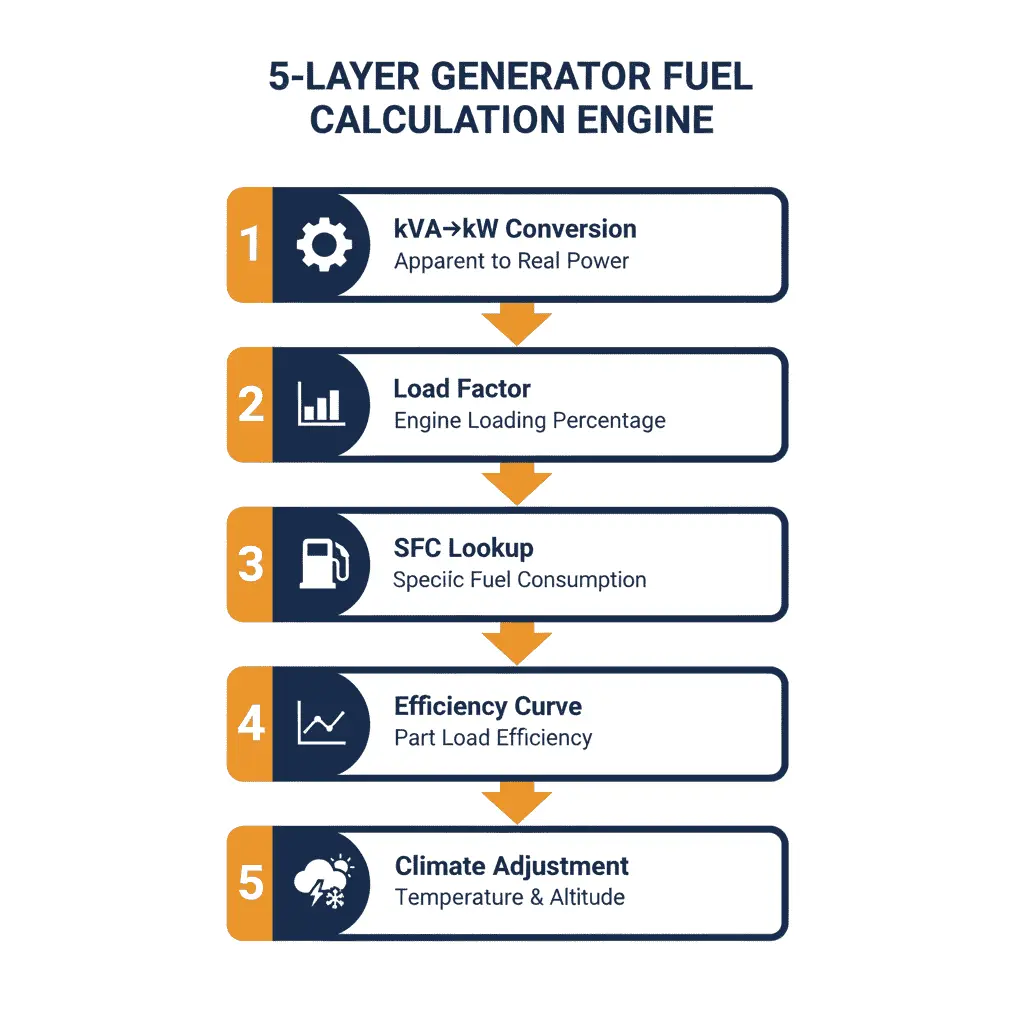

How Does the Generator Fuel Cost Calculator Work?

Most “fuel consumption charts” online give you one number — gallons per hour at full load. That’s about as useful as quoting a car’s fuel economy only at 200 km/h. Real generators don’t run at full load. They cycle through different demands, and fuel consumption changes non-linearly with every shift. This calculator models that reality across five calculation layers.

Layer 1 — kVA to kW Conversion

Generators are often rated in kVA (kilovolt-amperes), but fuel consumption depends on actual real power in kW. The calculator converts automatically using the power factor you enter:

Layer 2 — Actual Load Output

You can also enter actual kW directly in the “Actual Load” field — the calculator back-calculates the load percentage. This is useful when you have a measured facility demand from a power meter but don’t know what percentage of generator capacity it represents.

Layer 3 — SFC Lookup with Load Interpolation

Specific Fuel Consumption (SFC) is how much fuel your engine burns to produce one kWh of electricity. The calculator stores SFC reference points at 25%, 50%, 75%, and 100% load for each fuel type, then linearly interpolates between them for any load value you enter. SFC forms a U-shaped curve — best (lowest) at around 75% load for most diesel engines.

Layer 4 — Efficiency Curve Multiplier

A separate efficiency factor adjusts consumption based on how far you are from the optimal operating zone. Running at 25% load means the efficiency factor is only 75% — so you’re wasting 25% more fuel per unit of electricity produced than you would at the 71–85% sweet spot.

Layer 5 — Climate and Altitude Correction

Air density directly affects combustion efficiency. The calculator applies three correction factors:

• Cold climate (below −10°C / 14°F): +13% fuel — thicker oil, longer warm-up cycles, higher auxiliary load
• Hot climate (above 35°C / 95°F): +6% fuel — reduced air density, engine works harder to maintain output
• High altitude (above 1,500 m / 4,920 ft): +10% fuel — turbocharged engines derate significantly above this threshold

The Specific Fuel Consumption Formula — Explained Simply

When I benchmark generators on client sites, SFC is the first number I ask for. It’s the single most important metric for running cost prediction — and it’s consistently misunderstood or ignored by facility managers who rely on rough rule-of-thumb estimates. Here’s how to use it correctly.

The Core Hourly Consumption Formula

Complete SFC Reference Table — All Fuel Types

Source: ISO 3046-1 performance standards; Cummins QSK-series technical data 2025; Caterpillar generator set specification sheets. Modern industrial engines at ISO reference conditions. Older units typically run 5–12% higher across all load points.

Converting g/kWh to L/kWh (Nameplate Data Conversion)

Some manufacturers publish SFC in grams per kWh. A world-class modern diesel might spec 205 g/kWh. Here’s the conversion:

Diesel vs Gasoline vs Natural Gas vs Propane: Which Costs Less to Run?

Here’s a comparison most people get wrong: gasoline is cheaper per gallon than diesel in many markets, yet it costs more to generate electricity with. Why? Because gasoline produces less power per gallon, and gasoline engines are less thermally efficient than diesel engines. The only fair comparison is cost per kWh generated.

When to Choose Each Fuel

Diesel remains the global default for commercial and industrial standby power. It stores for 12–18 months with biocide additive, works at every altitude and temperature, and infrastructure (tanks, pumps, dispensers) is mature worldwide. It’s the benchmark against which all other fuels are measured.

Natural gas wins on operating cost whenever pipeline connection is feasible — typically 35–45% cheaper per kWh than diesel in North American markets. No fuel storage risk, no delivery logistics, no degradation issues. The constraint: you need existing infrastructure, and this option is unavailable at remote or disaster-prone sites.

Propane is the best choice for remote or semi-remote sites that want gas-like economics. A 1,000-gallon above-ground tank provides a 100 kW generator approximately 100–120 hours of runtime. Propane doesn’t degrade in storage, making it excellent for emergency standby systems that may sit unused for months.

Gasoline is viable only for portable generators under 10 kW used intermittently. It degrades in as little as 30 days without stabilizer, costs the most per kWh, and produces more CO₂ per unit of electricity than any other common generator fuel.

How Load Percentage Destroys (or Saves) Your Fuel Budget

Ahmed Karimi manages facilities at a 200-bed private hospital in Karachi. His team ran a 500 kW Cummins standby generator at roughly 30% load during the frequent grid outages in 2024. When he used our fuel cost calculator to model actual vs. optimal load, the numbers were sobering: he was paying PKR 220,000 per month in fuel when a right-sized 200 kW unit running at 75% load would cost PKR 95,000 for identical power output. He right-sized in January 2025. Within three months, the fuel savings covered the cost of the new generator’s down payment.

This is the most expensive and most common generator mistake: buying the biggest available unit “just in case.” Bigger generators don’t run better at light loads — they run significantly worse.

Why Light Load Is So Wasteful

At very low loads, diesel engine combustion chambers don’t reach optimal operating temperature. The fuel injection system delivers a minimum quantity per stroke regardless of demand. Combustion is incomplete, carbon deposits build up on injectors and piston rings, and lube oil contamination accelerates. You’re burning fuel and degrading the engine simultaneously.

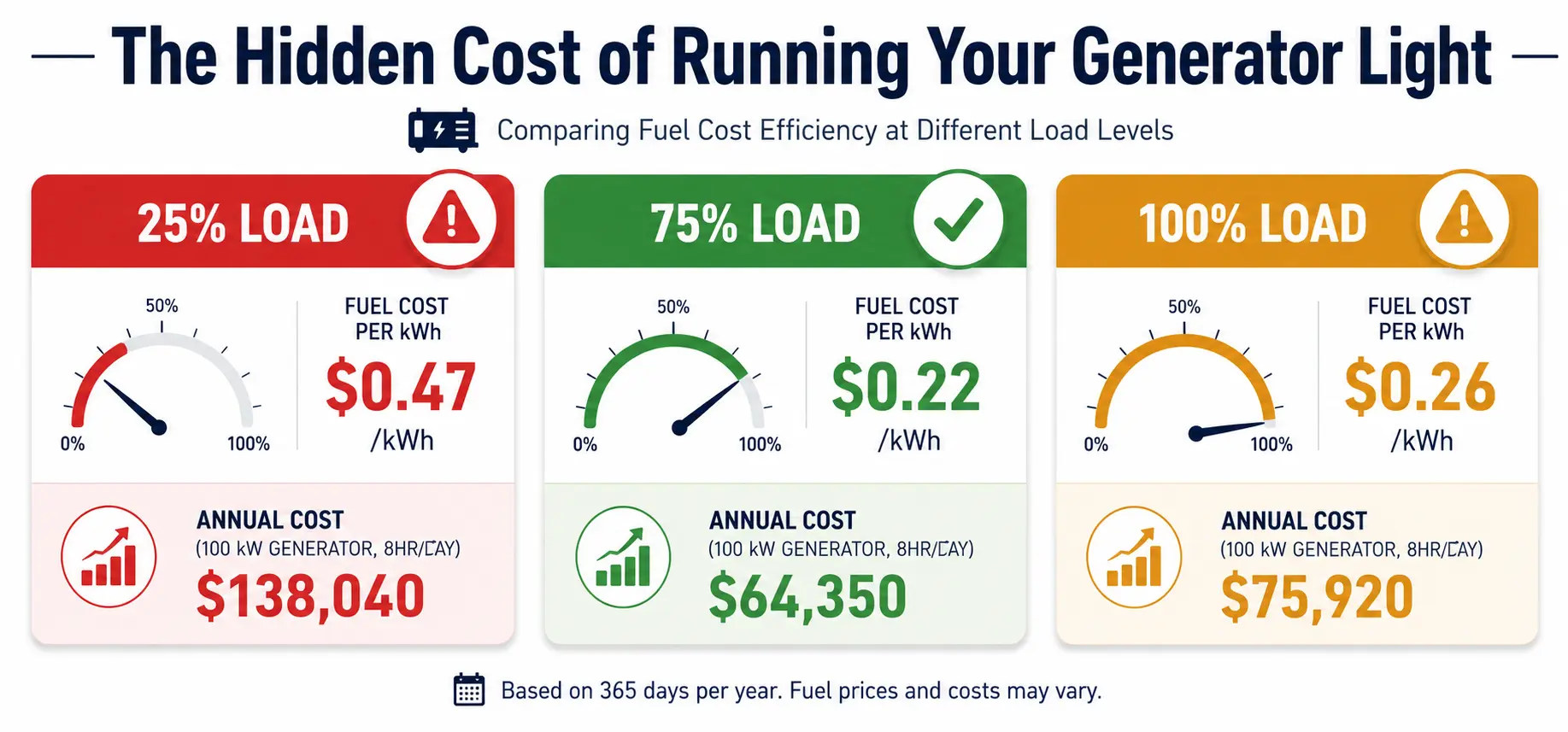

The numbers tell a clear story. At 25% load you’re generating electricity at $0.47/kWh — more than double the $0.22/kWh at optimal. Across 365 days at 8 hours per day, that 50-percentage-point load difference costs an extra $22,408 in fuel annually on a single 100 kW generator. Multiply that across a fleet and the numbers become enormous.

How to Use the Generator Fuel Cost Calculator: Step-by-Step

What You’ll Need Before You Start

• Generator nameplate data: rated kW or kVA + power factor (usually printed on the data plate or in the manual)
• Your average load: check a facility power meter, or use 75% as a conservative starting estimate if unknown
• Current local fuel price: check your last delivery invoice or fuel retailer website
• Daily operating hours: actual run-time, not calendar time — a standby generator may only run 2–4 hrs/day on average even during frequent outages

Step-by-Step Instructions

1. Set Generator Size — Enter rated power. Toggle between kW and kVA using the unit selector. If entering kVA, confirm the power factor field (default 0.8 suits most commercial loads; use 1.0 for pure resistive residential loads).
2. Set Load Percentage — Use the slider or type a value. You can also type your actual kW demand in the “Actual Load (kW)” field — the calculator automatically calculates the percentage. Start at 75% if you don’t know your real load.
3. Choose Fuel Type — Click the fuel button matching your generator. Each fuel uses different SFC data, energy density, and CO₂ emission factors.
4. Enter Fuel Price — Type your current price per gallon or liter. Use the currency dropdown for non-USD regions. This single input has the biggest impact on cost output accuracy — a $0.50/gal price error on a 100 kW generator creates a $2/hr or $5,800/yr error in cost estimates.
5. Set Operating Schedule — Enter daily hours and days per month. Use the preset buttons (8 hrs, 12 hrs, 24/7) for quick scenarios.
6. Select Climate / Altitude — If your site is in extreme conditions, choose the matching option. This applies the correction factors described in Section 1.
7. Read Your Results — The hero panel shows fuel rate per hour. The breakdown table gives consumption and cost per period. The bar chart compares your current fuel type against all alternatives at the same load — instantly showing whether a fuel switch would save money.
8. Save or Share — Use “Copy Summary” for a text snapshot, “Save JSON” to download a reloadable config file, or “Print” for a formatted PDF-ready report.

Reading the Economics Indicator (Traffic Light)

• 🟢 Green: Cost per kWh is at or below your local grid rate — generator power is competitive with grid supply.
• 🟡 Amber: Cost per kWh is 1–1.5× grid rate — acceptable for backup/standby but worth reviewing.
• 🔴 Red: Cost per kWh exceeds 1.5× grid rate — consider natural gas conversion, load optimization, or a more efficient generator set.

Generator Fuel Cost by Size: Complete Reference Tables

Assumptions: 75% load, normal climate, sea level, modern engine (post-2015). Use the calculator above for your exact fuel price, climate conditions, and load factor. Values based on ISO 3046-1 SFC data; EIA diesel price $3.85/gal May 2026.

6 Proven Ways to Cut Generator Fuel Costs

1. Right-Size Your Generator

Oversizing is the most expensive single mistake in generator procurement. If your peak demand is 60 kW, a 100 kW generator runs at 60% load — not terrible, but a 75 kW unit at 80% load is meaningfully cheaper to operate, costs less to buy, and extends engine life. Use the Generator Runtime calculator to estimate your total running hours before selecting a generator size.

2. Stick to Your Maintenance Schedule

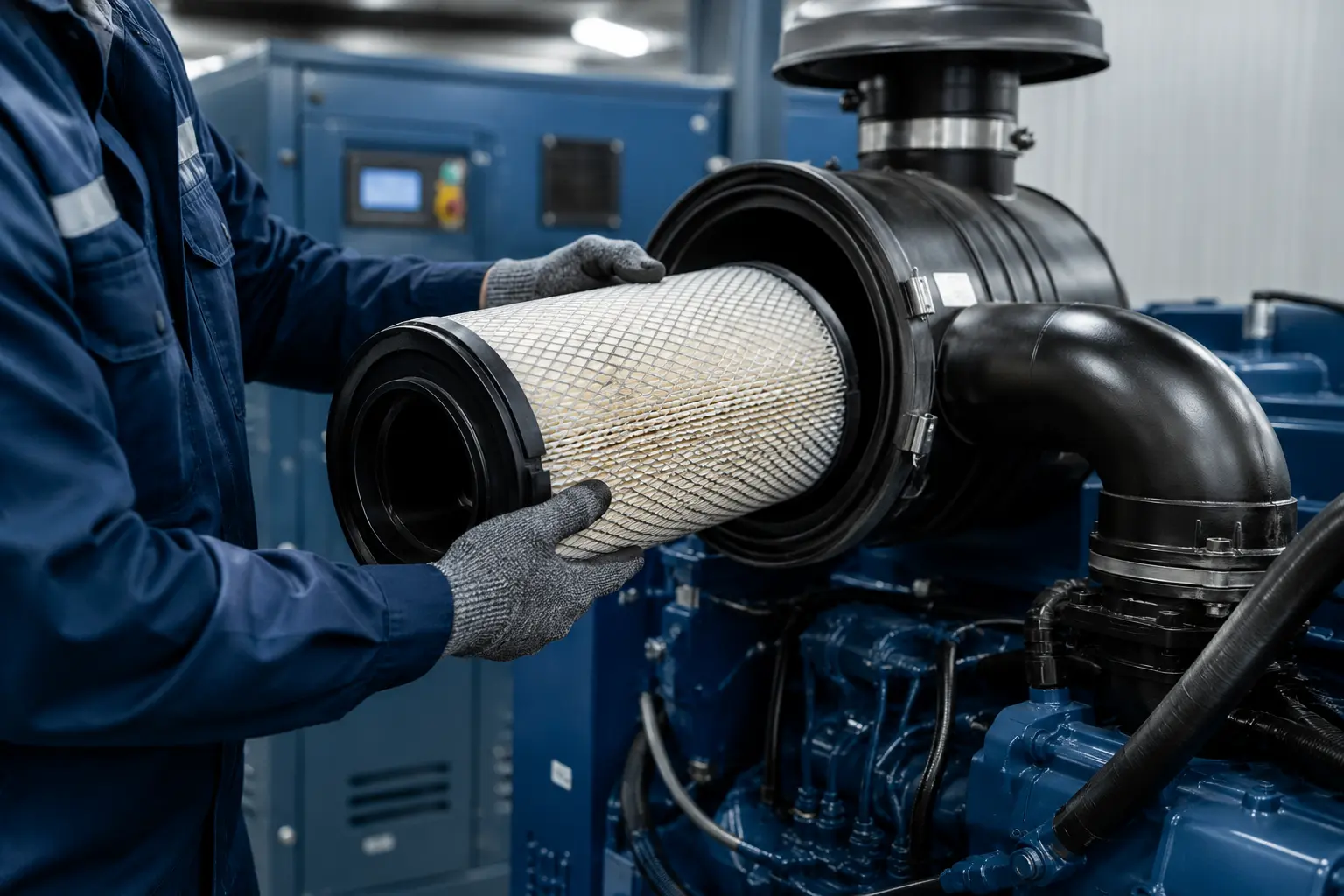

A clogged air filter increases fuel consumption by 3–8%. Worn injectors can push consumption 10–15% above baseline. According to Cummins technical documentation, most diesel generators require oil and filter service every 250–500 hours under normal conditions, with injector inspection at 1,000–2,000 hours. Deferred maintenance is a direct tax on your fuel bill.

3. Optimize Load Scheduling

If you run multiple generators, keep each one in the 70–80% load zone rather than spreading load across several lightly-loaded units. Two 250 kW generators each at 40% load costs significantly more per kWh than one unit at 80% load. Use the cost calculator’s scenario comparison to model both options with your exact numbers.

4. Consider a Natural Gas Conversion

Where pipeline gas is available, converting from diesel to natural gas typically reduces fuel costs by 30–50% for equivalent kW output. Conversion kits are available for most Cummins, CAT, and Generac diesel platforms. For generators running more than 2,000 hours per year, payback periods of 18–36 months are common according to field data compiled by the Electric Power Research Institute (EPRI).

5. Improve Your Power Factor

A power factor below 0.85 means your generator is producing reactive power that doesn’t show up as useful work — but still burns fuel. Power factor correction capacitor banks cost $500–$3,000 for commercial installations and typically reduce fuel consumption by 5–12% on sites with heavy motor loads (HVAC, pumps, compressors). Calculate your potential savings using the power factor field in the calculator.

6. Install a Fuel Flow Meter

An inline diesel flow meter costs $150–$400 and gives you real-time consumption data you can feed directly into the calculator for live benchmarking. In practice, every facility that starts tracking fuel consumption identifies at least one efficiency issue within the first 30 days — usually worth more than the meter’s cost in monthly savings. For larger installations, consider integrating flow data with a building energy management system.

Frequently Asked Questions
