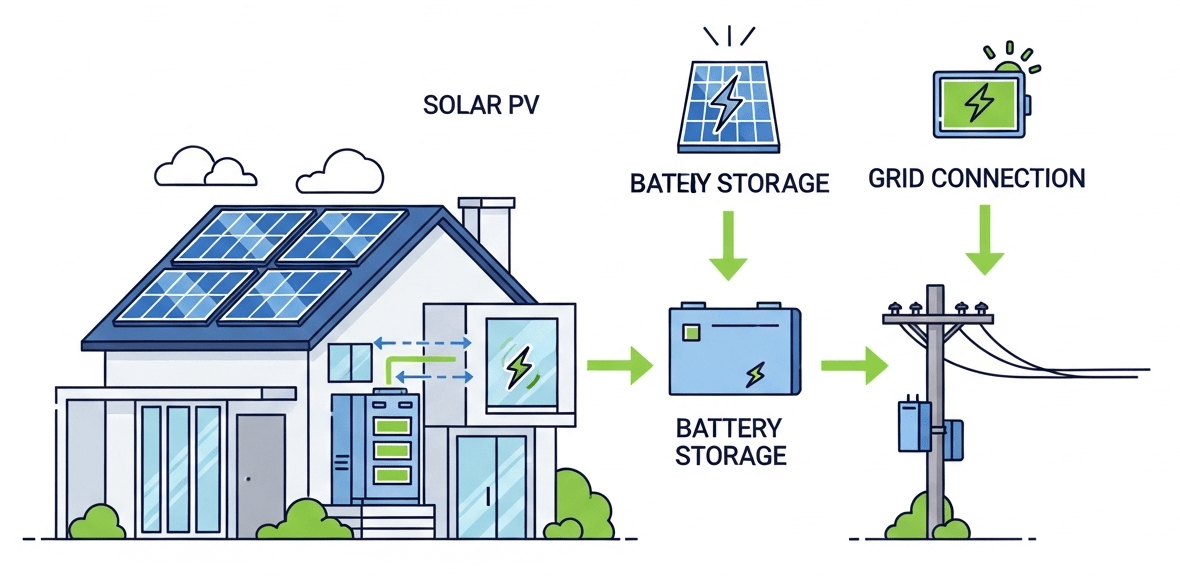

hybrid solar system diagram showing solar panels, battery storage, and grid connection.967z min

What is a Hybrid Solar System?

A hybrid solar system is a smart energy solution that combines three key components:

Solar Panels (PV System) – Generate clean electricity from sunlight
Battery Storage – Store excess solar energy for nighttime or cloudy days
Grid Connection – Backup power when solar and battery aren't enough

Unlike purely off-grid systems that leave you stranded during low-sun periods, or basic on-grid systems that don't store energy, hybrid systems give you energy independence WITH security. You use solar first, battery second, and grid power only when necessary.

Think of it like having a savings account for electricity. When the sun's shining, you're making deposits. At night, you withdraw from savings. And if your account runs low? The grid is your backup credit line.

Why You Need a Hybrid Solar System Planner Calculator

infographic comparing poorly planned vs properly planned solar systems.730z min

Here's the problem: Most people either over-invest in massive solar systems they don't need or under-size their setup and end up frustrated with constant grid dependency.

A recent study showed that 63% of homeowners who installed solar without proper planning either regretted their system size or faced unexpected bills. Why? Because they didn't account for their actual hourly consumption, battery efficiency losses, or regional solar irradiance.

The Hybrid Solar System Planner Calculator solves this by:

Analyzing your 24-hour energy consumption pattern
Calculating optimal PV system size based on your location's sunlight
Recommending battery capacity for your backup needs
Simulating real power flows hour by hour
Estimating annual costs with your local electricity tariffs

Instead of guessing or relying on one-size-fits-all recommendations, you get a custom blueprint tailored to YOUR energy profile.

How Does the Hybrid Solar System Planner Calculator Work?

Let's break down the tool's intelligent calculation engine step by step. Understanding this helps you make smarter decisions and trust the results.

Step 1: Load Profile Analysis

The calculator starts by analyzing your hourly electricity consumption over 24 hours. You can either:

Enter your usage manually for each hour
Upload a CSV file with your smart meter data
Choose from built-in templates (Household, Small Shop, Office)

Formula Used:

Daily Load (kWh) = Σ(Hour 0 to Hour 23) Hourly Consumption

Example: If you use 1.5 kWh at 6 AM, 2.0 kWh at 7 AM, and so on, the calculator adds all 24 values. A typical household might total 30 kWh per day, while a small shop could be 60 kWh/day.

Step 2: Solar PV Generation Modeling

The tool calculates how much electricity your solar panels will produce each hour based on:

PV System Size (kWp) – Peak kilowatt capacity
Peak Sun Hours (PSH) – Average daily sunlight in your region
Derate Factor – Accounts for losses (shading, temperature, inverter efficiency)

Core PV Formula:

Total Daily PV Production (kWh) = PV Size (kWp) × PSH × Derate Factor

Hourly Distribution: The calculator uses a Gaussian (bell curve) distribution to spread production across daylight hours (typically 5 AM to 7 PM):

Raw Profile[hour] = e^(-(x²) × 1.6)

where x = (hour - 12) / 6

This creates a realistic curve peaking at noon and tapering at sunrise/sunset.

Example Calculation:

PV Size: 5 kWp
PSH: 5.0 hours (Australia)
Derate: 0.88 (88% efficiency)

Daily Production = 5 × 5.0 × 0.88 = 22 kWh/day

The tool then distributes this 22 kWh across 24 hours, with most generation between 9 AM and 4 PM.

Step 3: Battery Simulation with State of Charge (SOC)

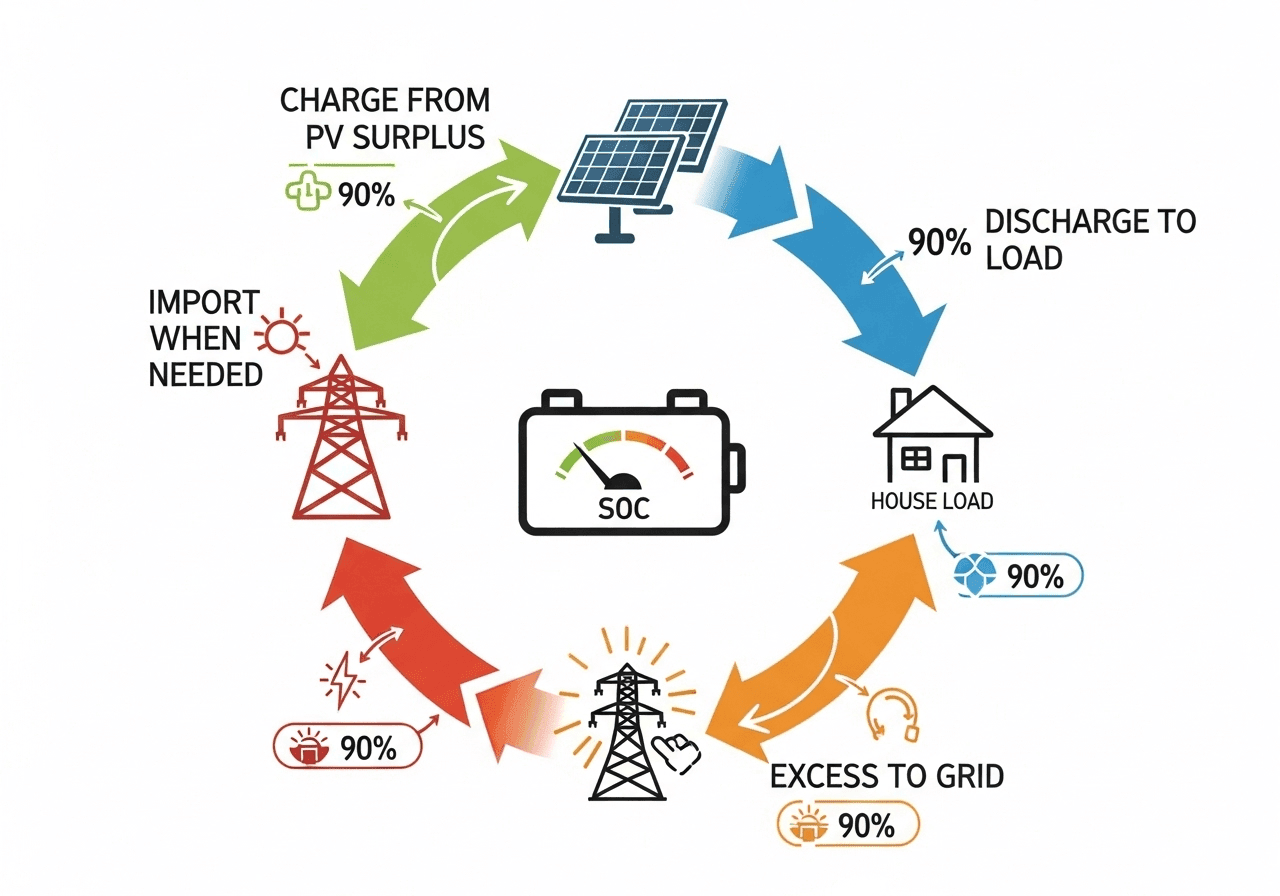

battery energy flow diagram showing charge, discharge, and grid interaction.803z min

This is where the magic happens. The calculator simulates your battery's charge and discharge cycle hour by hour, respecting physical constraints:

Key Battery Parameters:

Nominal Capacity – Total battery size (kWh)
Depth of Discharge (DoD) – How much you can safely drain (typically 80%)
Round-Trip Efficiency – Energy lost during charge/discharge (typically 90%)

Usable Battery Range:

Minimum SOC = Capacity × (1 - DoD/100)

Maximum SOC = Capacity

Example:

Battery: 10 kWh
DoD: 80%
Minimum SOC: 10 × 0.2 = 2 kWh (reserve)
Maximum SOC: 10 kWh
Usable: 8 kWh

Hourly Simulation Logic:

For each hour, the calculator follows this sequence:

Meet Load from PV First

   PV to Load = min(PV Available, Load Required)

Charge Battery from Surplus PV

   Available Space = Max SOC - Current SOC

   Charge Amount = min(PV Surplus, Available Space / Efficiency)

   New SOC = Current SOC + (Charge × Efficiency)

Export Excess to Grid

   Grid Export = PV Surplus - Battery Charge

Discharge Battery if Load Exceeds PV

   Usable Energy = (Current SOC - Min SOC) × Efficiency

   Discharge = min(Usable Energy, Remaining Load)

   New SOC = Current SOC - (Discharge / Efficiency)

Import from Grid as Last Resort

   Grid Import = Load - PV - Battery Discharge

Real Example (Hour 19 - 7 PM):

Load: 3.0 kWh
PV: 0 kWh (night)
Battery SOC Start: 7.5 kWh
Min SOC: 2.0 kWh

Usable = (7.5 - 2.0) × 0.9 = 4.95 kWh available

Battery Discharge = min(4.95, 3.0) = 3.0 kWh delivered

Battery Used = 3.0 / 0.9 = 3.33 kWh drawn

New SOC = 7.5 - 3.33 = 4.17 kWh

Grid Import = 0 kWh (battery covered it!)

Step 4: Financial Analysis with Time-of-Use (TOU) Tariffs

The calculator doesn't just track energy—it calculates costs using your local electricity rates.

Two Tariff Options:

Flat Rate – Same price all day
Time-of-Use – Higher rates during peak hours (typically 5-9 PM)

Annual Cost Formula:

Annual Cost = Σ(hour 0-23) [

  (Grid Import × Buy Rate) - (Grid Export × Sell Rate)

] × 365 days

Example with TOU (Australia):

Peak Rate (5-9 PM): $0.60/kWh
Off-Peak: $0.30/kWh
Feed-in Tariff: $0.08/kWh

If you import 2 kWh at 7 PM and export 5 kWh at 1 PM:

Cost = (2 × 0.60) - (5 × 0.08) = $1.20 - $0.40 = $0.80/day

Annual = 0.80 × 365 = $292

Step 5: System Sizing Recommendations

If you leave PV or battery size at zero, the calculator auto-recommends based on:

PV Recommendation:

Recommended PV (kWp) = Daily Load / PSH

Example: 30 kWh daily load ÷ 5 PSH = 6 kWp system

Battery Recommendation:

Required Backup = Critical Load (kW) × Backup Hours

Recommended Battery = Required Backup / (DoD/100)

Example: 1 kW critical load × 4 hours = 4 kWh needed With 80% DoD: 4 / 0.8 = 5 kWh battery

Key Features of the Hybrid Solar System Planner Calculator

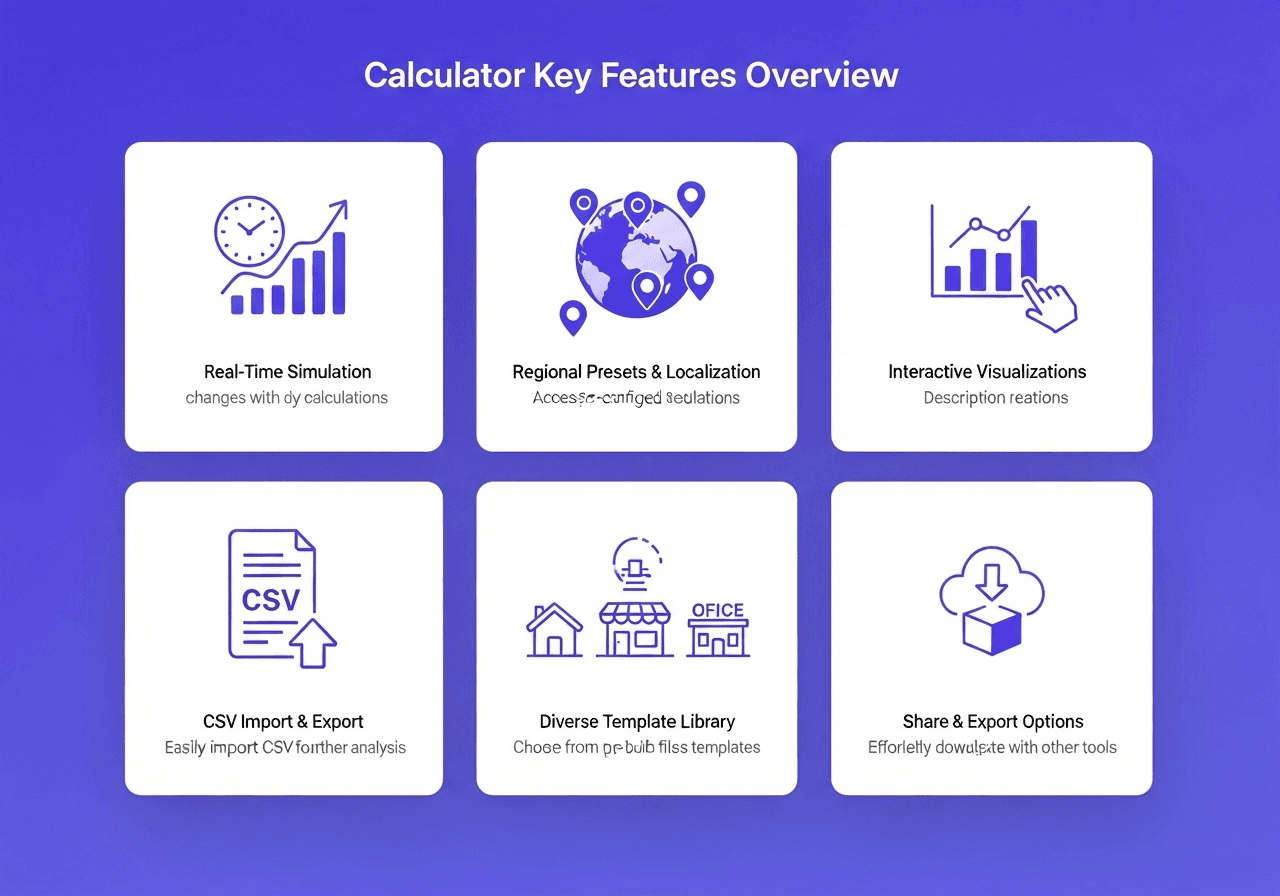

six key features of hybrid solar system planner calculator.514z min

Real-Time Simulation Engine

Unlike static calculators that give you one number, this tool runs a complete 24-hour energy flow simulation. You see exactly:

How much solar you generate each hour
When your battery charges and discharges
Grid import/export patterns
State of charge throughout the day

Regional Presets for Accurate Results

The calculator includes built-in defaults for four major regions:

Regional Solar & Tariff Presets

Region	Peak Sun Hours	Flat Tariff	Peak Hours	Currency
Australia	5.0	$0.35/kWh	5-9 PM ($0.60)	AUD
USA	4.5	$0.18/kWh	4-9 PM ($0.35)	USD
Canada	3.5	$0.15/kWh	5-8 PM ($0.28)	CAD
Europe	3.8	€0.25/kWh	6-10 PM (€0.40)	EUR

These presets automatically adjust sunlight hours and electricity rates based on your location.

Interactive Visualizations

The calculator generates three types of charts:

Stacked Area Chart – Shows PV, battery, and grid contributions
Battery SOC Graph – Tracks charge level over 24 hours
Power Flows – Visualizes energy movement between components

These visuals make complex data easy to understand at a glance.

CSV Import/Export Capabilities

For advanced users, you can:

Import load profiles from your smart meter
Upload PV production data from existing systems
Export hourly dispatch results for further analysis
Download complete JSON with all parameters

Built-In Templates for Common Scenarios

Don't have hourly data? No problem. Choose from:

Household (30 kWh/day) – Morning and evening peaks
Small Shop (60 kWh/day) – Daytime heavy usage
Office (80 kWh/day) – Business hours consumption

Step-by-Step Guide: Using the Calculator

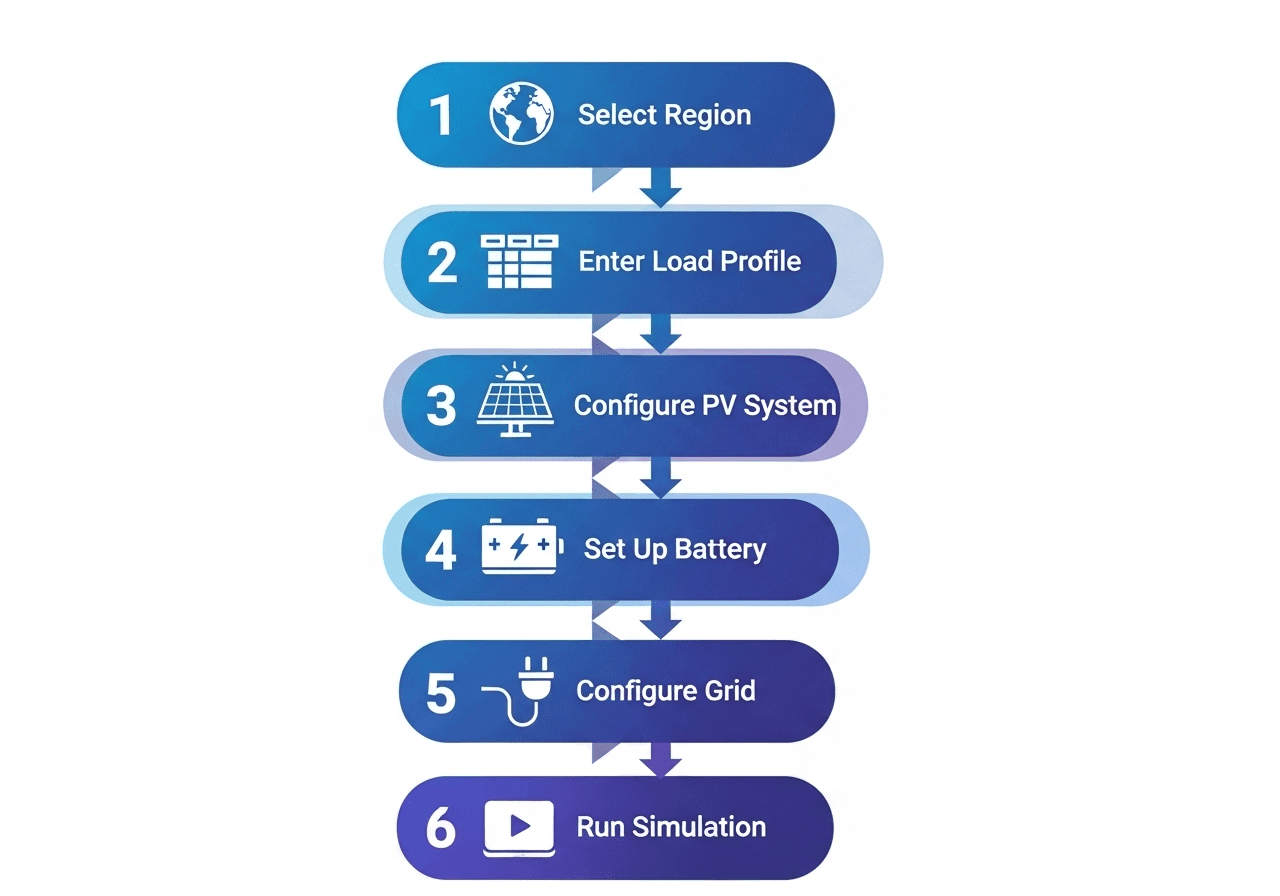

six step guide for using the hybrid solar system planner calculator.952z min

Getting Started

Select Your Region Choose Australia, USA, Canada, or Europe from the dropdown. This auto-fills:

Peak sun hours
Local electricity rates
Currency symbol

Enter Your Load Profile Three options:

Manual Entry: Type hourly consumption in the table
CSV Upload: Click "Choose File" and select your meter data
Template: Pick "Household", "Small Shop", or "Office"

Configure PV System

Set panel size (kWp) or leave at 0 for auto-recommendation
Adjust daily irradiance (PSH) if you know your local value
Set derate factor (default 0.88 accounts for typical losses)

Set Up Battery Storage

Enter battery capacity (kWh) or let the tool recommend
Use the slider to set backup hours for critical loads
Define critical load (kW) – what MUST stay on during outages
Adjust depth of discharge (80% is safe for most lithium batteries)
Set round-trip efficiency (90% is typical)

Configure Grid Connection

Enter flat tariff rate per kWh
Enable TOU (Time-of-Use) if your utility charges peak rates
Edit buy/sell rates for each hour in the TOU editor

Run Simulation Click the "Run" button or just change any value—the tool updates automatically!

Understanding Your Results

After running the simulation, you'll see four key performance indicators:

Recommended PV – Optimal solar panel size for your needs
Recommended Battery – Ideal storage capacity
Monthly Grid Import – How much you'll still buy from utility
Estimated Annual Cost – Total electricity expenses per year

Below these, the Hourly Dispatch Table shows minute details:

Load demand each hour
PV generation
Battery state of charge
Grid import/export

This transparency helps you spot opportunities—like shifting appliance usage to solar peak hours.

Real-World Application Examples

Example 1: Australian Suburban Home

Scenario:

Location: Brisbane, Australia
Daily consumption: 32 kWh
Budget: Moderate
Goal: Minimize grid dependency during expensive peak hours

Calculator Inputs:

Region: Australia
Load profile: Household template (modified for AC usage)
PV: Auto (calculator recommends)
Battery: Auto (calculator recommends)
Backup hours: 4 hours
Critical load: 1.5 kW

Results:

Recommended PV: 6.4 kWp
Recommended Battery: 7.5 kWh
Monthly grid import: 180 kWh (down from 960 kWh!)
Annual cost: AUD $2,940 (saving $2,600 vs. grid-only)

Analysis: With this setup, the home generates 28 kWh daily from solar. The battery stores 6 kWh of surplus during the day, which covers evening usage (5-9 PM) when rates spike to $0.60/kWh. Grid import only occurs during overnight hours at cheap off-peak rates.

Example 2: California Small Business

Scenario:

Location: Los Angeles, USA
Business hours: 9 AM - 6 PM
Daily consumption: 85 kWh
Major load: HVAC system (8 kW peak)
Goal: Maximum self-consumption

Calculator Inputs:

Region: USA
Load profile: Office template (adjusted for HVAC)
PV: 15 kWp (wants aggressive solar)
Battery: 20 kWh
TOU: Enabled (peak 4-9 PM)

Results:

PV generates 60 kWh/day
Battery fully charged by 2 PM daily
Zero grid import during peak hours
Monthly grid import: 450 kWh (all off-peak)
Annual cost: USD $3,200 (saving $8,400!)

Analysis: The 15 kWp system over-generates during midday. Excess charges the large 20 kWh battery, which seamlessly powers operations through the expensive 4-9 PM peak period. This setup achieves 71% solar fraction with minimal grid exposure.

Example 3: Canadian Off-Grid Cabin (Hybrid Backup)

Scenario:

Location: Alberta, Canada
Seasonal use: Summer cottage
Daily consumption: 15 kWh
Grid connection: Unreliable (frequent outages)
Goal: Maximum energy security

Calculator Inputs:

Region: Canada
Load profile: Custom (even distribution)
PV: 5 kWp
Battery: 15 kWh (oversized for autonomy)
Backup hours: 24 hours (full day reserve)
Critical load: 0.6 kW

Results:

PV generates 15.4 kWh/day (matches load!)
Battery maintains 12+ kWh SOC 80% of the time
Grid import: 45 kWh/month (only during multi-day clouds)
Annual cost: CAD $720 (negligible grid use)

Analysis: This system achieves near-total energy independence. The oversized battery (15 kWh with only 24 DoD used) provides multi-day autonomy. Even during Alberta's variable weather, the cabin rarely needs grid power.

Real-World Application Comparison

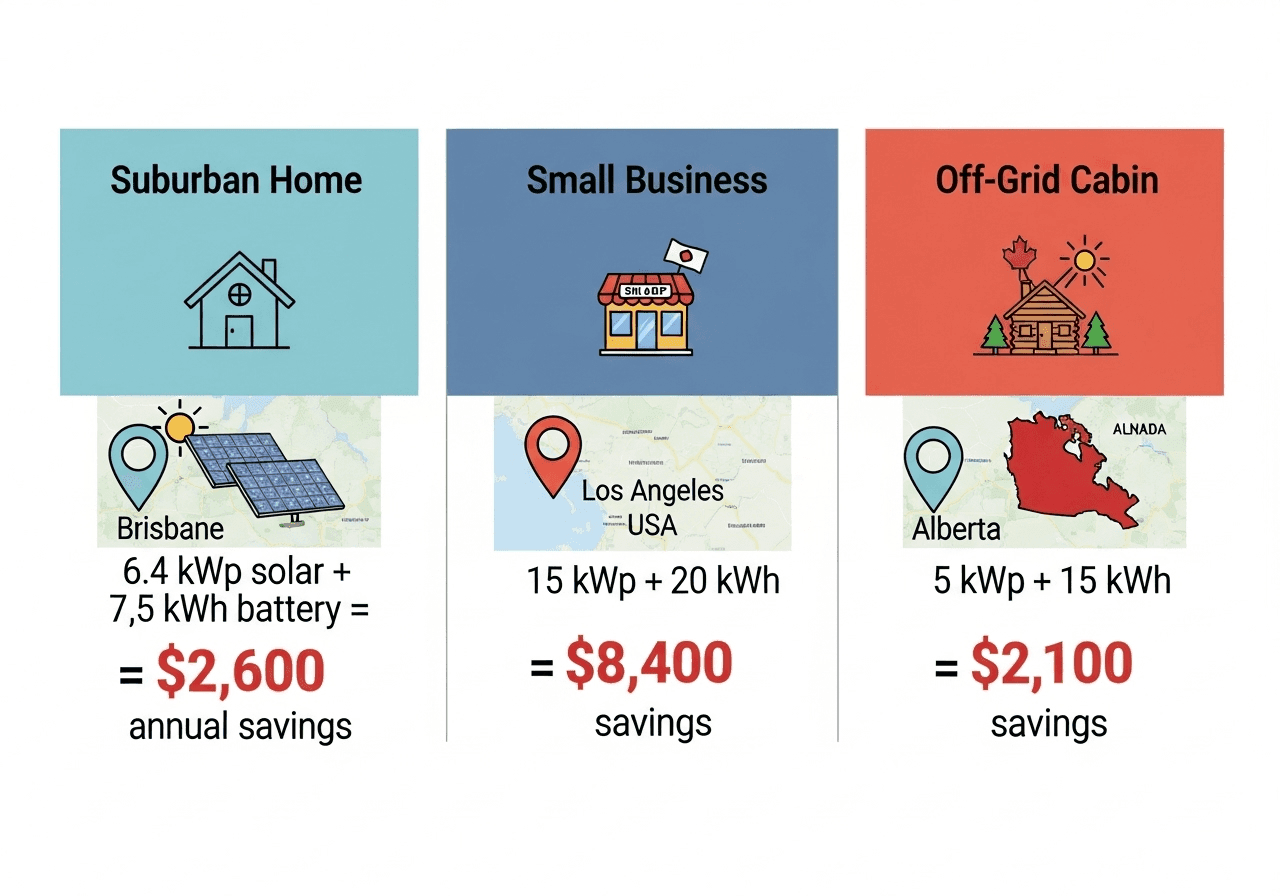

Three example scenarios with results

Scenario	Location	Daily Load	PV Size	Battery	Annual Cost	Annual Savings
Suburban Home	Brisbane, AU	32 kWh	6.4 kWp	7.5 kWh	AUD $2,940	AUD $2,600
Small Business	Los Angeles, USA	85 kWh	15 kWp	20 kWh	USD $3,200	USD $8,400
Off-Grid Cabin	Alberta, Canada	15 kWh	5 kWp	15 kWh	CAD $720	CAD $2,100

Advanced Tips for Optimizing Your Hybrid System

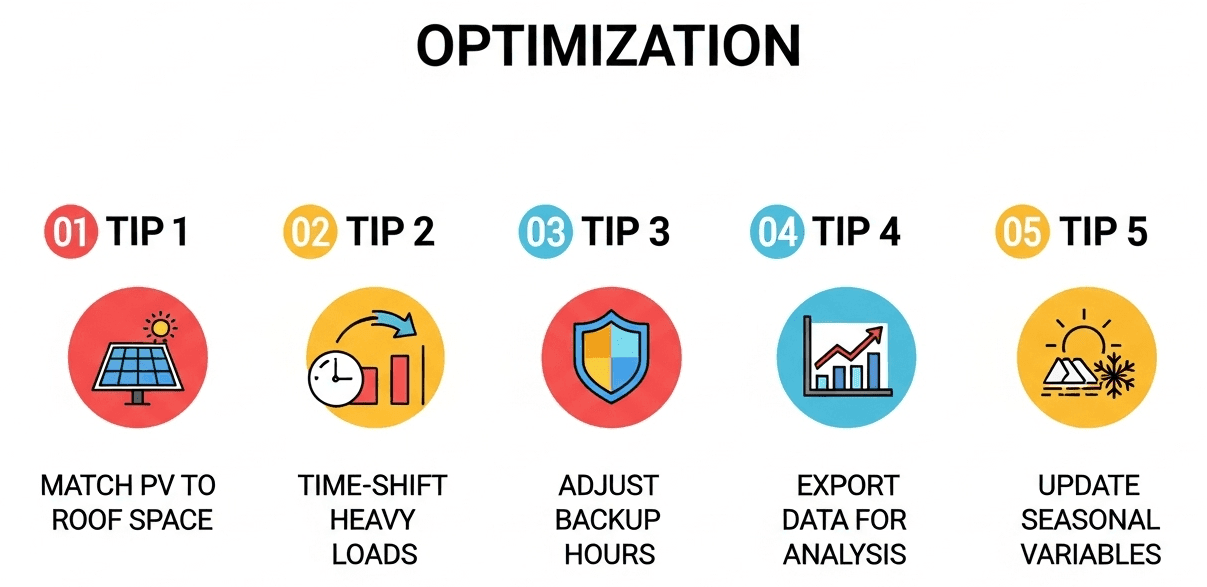

five advanced tips for optimizing hybrid solar system performance.198z min

Tip 1: Match PV Size to Roof Space, Not Just Load

While the calculator recommends based on consumption, physical constraints matter. If you have limited roof area:

Increase battery size to compensate
Focus on efficiency improvements first
Consider higher-efficiency panels (20%+ vs. 18%)

Tip 2: Time-Shift Heavy Loads to Solar Peak Hours

Use the calculator's hourly dispatch table to identify when you have surplus solar. Then:

Run washing machines and dishwashers between 11 AM - 2 PM
Charge electric vehicles during solar peak
Pre-cool/heat your home in late afternoon using solar

This reduces battery cycling and extends component life.

Tip 3: Adjust Backup Hours Based on Grid Reliability

If your grid is stable:

Use 2-4 backup hours (covers evening peak only)
Smaller battery = lower upfront cost

If outages are common:

Set 8-12 backup hours
The calculator will recommend a larger battery
Worth the investment for peace of mind

Tip 4: Export Hourly Data for Sensitivity Analysis

Use the "Export Dispatch CSV" function to analyze:

Which hours show highest grid import (target for optimization)
Battery SOC patterns (is it too small or too large?)
Export revenue potential (worth adding more panels?)

Tip 5: Update Seasonal Variables

Your energy use changes with seasons. Re-run the calculator:

Summer: Higher AC load, better sun → may need bigger PV
Winter: Lower sun, heating loads → battery plays bigger role
Use the tool's CSV import to model both scenarios

Common Mistakes to Avoid

Mistake 1: Ignoring Derate Factors

Many people assume a 5 kWp system produces exactly 5 kW. Wrong! Real-world losses include:

Temperature effects: 10-15%
Inverter efficiency: 3-5%
Shading: 5-20%
Soiling: 2-5%

The calculator's default 0.88 derate (12% total loss) is realistic. Don't change it to 1.0 unless you have pristine conditions.

Mistake 2: Over-Sizing Battery Without Matching PV

A huge battery is useless if you can't charge it. Example:

50 kWh daily load
60 kWh battery (think you're covered)
Only 5 kWp PV (generates 22 kWh/day)

Result? Battery never fully charges. You're paying for capacity you can't use. The calculator prevents this by balancing recommendations.

Mistake 3: Using Flat Tariff When TOU Applies

If your utility charges time-of-use rates but you enter a flat rate, the calculator underestimates savings. Always:

Check your electricity bill for TOU schedules
Enable TOU in the calculator
Manually enter peak/off-peak rates

This reveals the true value of battery storage during expensive hours.

Mistake 4: Neglecting Critical Load Definition

The calculator asks for "critical load" to size backup capacity. Many users leave it at default. Think through:

Refrigerator: 0.2 kW
Internet/Wi-Fi: 0.05 kW
LED lights: 0.1 kW
Medical equipment: varies
Security system: 0.05 kW

Total critical load determines minimum battery size for emergencies.

Mistake 5: Not Testing Different Scenarios

Don't just run the calculator once! Test:

Baseline (current usage)
With electric vehicle (add 10-15 kWh/day)
With pool pump removed (reduce 8 kWh/day)
With added solar (increase PV by 2 kWp)

Compare annual costs to find the sweet spot for YOUR situation.

Common Mistakes & Solutions

Avoid these pitfalls when using the calculator

Mistake	Impact	Solution
Ignoring derate factors	Overestimating PV production by 12-20%	Use default 0.88 derate factor
Over-sizing battery without matching PV	Paying for capacity you can't charge	Balance PV and battery recommendations
Using flat tariff when TOU applies	Underestimating savings by 30-50%	Enable TOU and enter peak rates
Neglecting critical load definition	Insufficient backup during outages	Calculate actual critical loads
Not testing different scenarios	Missing optimization opportunities	Run multiple simulations with variations

Technical Specifications & Assumptions

Calculation Engine Details

Default parameters and acceptable ranges

Parameter	Default Value	Range	Notes
Simulation Period	24 hours	Fixed	Represents typical day
Battery Start SOC	60%	20-100%	Conservative assumption
Min SOC Buffer	(1-DoD) × Capacity	—	Protects battery health
PV Temperature Coefficient	Included in derate	—	Part of 0.88 factor
Inverter Clipping	Not modeled	—	Assumes proper sizing
Self-Discharge Rate	Negligible	—	Modern lithium <2%/month

Regional Solar Irradiance Assumptions

The calculator uses average annual PSH values:

Australia: 5.0 hours (varies 4.2-5.8 by city)
USA: 4.5 hours (varies 3.0-5.5 by state)
Canada: 3.5 hours (varies 2.5-4.5 by province)
Europe: 3.8 hours (varies 2.8-5.0 by country)

For precision, override with your specific location's data from PVWatts or similar tools.

Battery Technology Assumptions

The calculator is optimized for lithium-ion batteries (LiFePO4 or NMC). If using lead-acid:

Reduce DoD to 50%
Lower round-trip efficiency to 80%
Double the recommended size

Battery Technology Parameters

Adjust calculator settings for different battery types

Battery Type	Recommended DoD	Round-Trip Efficiency	Cycle Life	Cost Factor
Lithium-Ion (NMC)	80-90%	90-95%	3,000-6,000	Medium
LiFePO4 (LFP)	80-100%	92-96%	6,000-10,000	Medium-High
Lead-Acid (AGM)	50%	75-85%	500-1,500	Low
Saltwater (Aquion)	90-100%	85-90%	3,000-5,000	Medium

Grid Connection Standards

The tool assumes:

Single-phase residential connection
Inverter meets local grid codes (UL1741, AS4777, etc.)
Net metering or feed-in tariff available
No demand charges (future feature)

Frequently Asked Questions (FAQs)

What is the difference between on-grid, off-grid, and hybrid solar systems?

On-grid systems connect directly to the utility with no battery. You use solar during the day and grid at night. Off-grid systems have batteries and no grid connection, requiring oversized solar and storage. Hybrid systems combine both: solar panels, batteries, AND grid backup. You get energy independence with a safety net.

How accurate is the Hybrid Solar System Planner Calculator?

The calculator provides 85-95% accuracy for typical residential and commercial installations. Actual performance depends on weather variations, shading, and appliance usage patterns. For best results, input your actual hourly consumption data rather than estimates. Professional installers use similar simulation engines for system design.

Can I use the calculator for three-phase commercial systems?

Yes, but treat each phase as a separate calculation or sum all three phases into a single load profile. The tool's logic applies universally. For large commercial systems (>100 kWp), consult a professional engineer for thermal analysis, voltage drop calculations, and demand charge optimization not included in this tool.

What battery brands work with this calculator?

The calculator is brand-agnostic and works with any battery technology. Simply enter the specifications: capacity (kWh), depth of discharge, and efficiency. Popular brands like Tesla Powerwall, LG Chem, BYD, and Enphase all fit within these parameters. Check your battery's datasheet for exact values.

How do I account for seasonal variations in solar production?

Run the calculator multiple times with different PSH values for summer and winter. Most regions see 30-50% seasonal variation. For example, adjust Australia's 5.0 PSH to 6.2 in summer and 3.8 in winter. This reveals whether your system handles worst-case scenarios or if you need grid reliance in darker months.

Does the calculator include installation costs or payback period?

No, the tool focuses on energy flows and operational costs. Installation costs vary widely by location, installer, and incentives. To calculate payback: divide total system cost by annual savings (shown in the calculator). Typical payback ranges from 5-8 years for residential systems with strong solar resources.

Can I simulate battery degradation over time?

The current version uses fixed parameters. For long-term planning, reduce battery capacity by 2-3% per year manually and re-run simulations. Most lithium batteries retain 80% capacity after 10 years. Advanced users can export hourly data and apply degradation curves in spreadsheet software for multi-year projections.

What if my electricity rate changes or I switch to time-of-use billing?

Simply update the tariff values in the calculator and re-run. The tool instantly recalculates costs. This is useful for evaluating whether switching to TOU rates makes sense for your solar system. Often, TOU rates INCREASE hybrid system value by rewarding you for avoiding expensive peak hours.

Conclusion: Design Your Perfect Hybrid Solar System Today

Planning a hybrid solar system doesn't have to be complicated or expensive. With the Hybrid Solar System Planner Calculator, you get professional-grade simulations absolutely free, tailored to your unique energy profile and location.

Here's what makes this tool indispensable:

Accurate hourly simulations showing real energy flows
Regional optimization for Australia, USA, Canada, and Europe
Intelligent sizing recommendations for both PV and batteries
Time-of-use tariff analysis maximizing your savings
Visual dashboards making complex data crystal clear
Export capabilities for detailed financial modeling

Whether you're a homeowner looking to slash electricity bills, a business aiming for energy resilience, or a solar installer designing client systems, this calculator delivers the insights you need.

Ready to take control of your energy future? Use the Hybrid Solar System Planner Calculator now and discover:

How much you'll save each year
The perfect PV and battery size for your needs
When to use solar vs. battery vs. grid power
Your path to energy independence

Don't let another month of high electricity bills slip by. Start planning your optimized hybrid solar system today—it takes just 5 minutes to get a complete analysis.

Share this tool with friends considering solar. Together, we're building a cleaner, more resilient energy future, one smart calculation at a time.

References & Data Sources

National Renewable Energy Laboratory (NREL)

PVWatts Calculator methodology for solar irradiance and derate factors

Australian Energy Market Operator (AEMO)

Time-of-use tariff structures and grid demand patterns

U.S. Energy Information Administration (EIA)

Average residential electricity prices by state (2024-2025)

International Energy Agency (IEA)

Battery storage efficiency standards and lithium-ion performance metrics

Tesla Energy

Powerwall specifications for round-trip effi

Hybrid Solar System Planner Calculator

Inputs — Load / PV / Battery / Grid

TOU Editor & Actions
