Single vs 3-Phase Comparison Calculator: Which System Saves You More Money?
Compare single-phase and three-phase electrical systems instantly. Calculate line current, I²R losses, efficiency, and cost savings with our free power comparison calculator.
Introduction
Ever wondered why industrial buildings use three-phase power while your home runs on single-phase? Here's the thing – the difference can save you thousands of dollars in electricity bills and equipment costs.
Imagine this: You're planning to set up a workshop, small factory, or commercial kitchen. The electrician throws around terms like "three-phase" and "balanced load," but what does it actually mean for your wallet? That's exactly what we're solving today.
The shocking truth? Running a 10 kW load on single-phase power can draw 73% more current than the same load on three-phase. More current means thicker cables, higher losses, and skyrocketing energy bills.
In this guide, you'll discover:
- How single-phase and three-phase systems actually work
- Why three-phase power dramatically reduces electrical losses
- How to calculate which system saves you more money
- Real-world examples with actual numbers
- A free calculator tool that does the math instantly
Let's dive into the numbers that matter for your bottom line.
Table of Contents
What Is Single-Phase vs. Three-Phase Power?
Understanding Single-Phase Power
Single-phase power is what you'll find in most homes across the USA, Canada, Australia, and Europe. It delivers electricity through two wires – one hot wire and one neutral wire.
Think of it like water flowing through a single pipe. The power comes in waves, peaking and dropping 60 times per second (50 times in some countries). This pulsating delivery works perfectly for lights, TVs, and small appliances, but struggles with heavy machinery.
Common single-phase voltages:
- 120V (USA, Canada)
- 230V (UK, Australia, EU)
- 240V (USA split-phase)
Understanding Three-Phase Power
Three-phase power uses three hot wires (and usually one neutral), delivering electricity in three overlapping waves. Picture three garden hoses working together instead of one – the water flow stays constant and powerful.
Here's where it gets interesting: because the three waves overlap perfectly, you never have a moment of zero power. Motors run smoother, equipment lasts longer, and you use less copper in your wiring.
Common three-phase voltages:
- 208V (USA commercial)
- 400V (EU standard)
- 415V (Australia, UK)
- 480V (USA industrial)
Why Three-Phase Power Is More Efficient
The Current Difference That Changes Everything
Let's break down the math that shocks most people. For the same power load:
Single-Phase Current Formula:
I = P / (V × PF)Three-Phase Current Formula:
I = P / (√3 × V × PF)Where:
- I = Current (Amps)
- P = Power (Watts)
- V = Voltage
- PF = Power Factor
- √3 = 1.732 (the magic number)
That √3 factor means three-phase systems draw 42% less current per wire for the same power. Less current equals smaller cables, lower losses, and reduced costs.
Real-World Example: 10 kW Load
Let's say you need to power a 10 kW workshop with a 0.9 power factor:
Single-Phase (230V):
- Current: 10,000 / (230 × 0.9) = 48.3 Amps
- Cable required: 10 mm² (expensive!)
- Power loss with 0.05Ω resistance: 116.6 Watts
Three-Phase (400V):
- Current per phase: 10,000 / (1.732 × 400 × 0.9) = 16.0 Amps
- Cable required: 2.5 mm² (much cheaper!)
- Total power loss: 38.4 Watts
You just cut your power losses by 67%. Over a year, that's real money saved.
How the Single vs. Three-Phase Calculator Works
Step-by-Step Calculation Process
Our calculator performs sophisticated electrical engineering calculations in milliseconds. Here's what happens behind the scenes:
Step 1: Input ProcessingThe tool accepts your load in kilowatts, converts it to watts (multiply by 1,000), and validates your voltage selection against standard electrical systems worldwide.
Step 2: Current CalculationsFor single-phase, it divides total power by voltage and power factor. For three-phase, it divides by the product of √3, voltage, and power factor. This instantly shows you the current difference.
Step 3: Loss CalculationsUsing the I²R loss formula (current squared times resistance), the calculator determines heat losses in your conductors. Three-phase systems calculate losses per phase, then multiply by three for total system loss.
Step 4: Visual ComparisonThe built-in chart displays current and losses side-by-side, making the efficiency gap impossible to miss.
Key Formulas Used
| Calculation | Single-Phase | Three-Phase |
|---|---|---|
| Line Current | I = P/(V×PF) | I = P/(√3×V×PF) |
| Power Loss | Loss = I²×R | Loss = 3×(I²×R) |
| Power Factor | Typically 0.85-0.95 | Typically 0.9-0.98 |
| Efficiency Impact | Higher losses | 50-70% lower losses |
Understanding Calculator Results
When you hit "Calculate," you'll see four critical numbers:
- Single-Phase Current – Higher values mean bigger cables and more heat
- Three-Phase Current – Per-phase value (multiply by √3 for equivalent single-phase)
- Single-Phase Losses – Wasted energy as heat in conductors
- Three-Phase Losses – Total system losses across all three phases
The percentage difference reveals your potential savings immediately.
When to Choose Single-Phase vs. Three-Phase
Single-Phase Makes Sense When:
Residential ApplicationsYour home typically needs single-phase because residential loads rarely exceed 10 kW continuously. Installing three-phase costs $3,000-$8,000 more upfront for minimal benefit.
Small Load RequirementsLoads under 5 kW run efficiently on single-phase. The efficiency gains of three-phase don't justify the installation costs at this scale.
Limited Motor UsageIf you're only running small power tools occasionally, single-phase handles them fine. Modern inverter-driven tools work excellently on household power.
Three-Phase Is Essential For:
| Application | Recommended System | Typical Load | Key Benefits |
|---|---|---|---|
| Residential Home | Single-Phase | 3-10 kW | Lower installation cost, adequate capacity |
| Small Workshop | Single-Phase | 5-8 kW | Simple setup, cost-effective |
| Commercial Kitchen | Three-Phase | 15-30 kW | Heavy equipment support, efficiency |
| Manufacturing Facility | Three-Phase | 50-500 kW | Motor efficiency, balanced loads |
| Data Center | Three-Phase | 100-1000 kW | Redundancy, UPS efficiency |
| Farm/Agriculture | Three-Phase | 20-75 kW | Large motor support, long runs |
Industrial OperationsFactories, manufacturing plants, and workshops benefit enormously. Running heavy machinery on single-phase is like driving a semi-truck with a car engine – possible but painfully inefficient.
Large HVAC SystemsCommercial air conditioning systems over 7.5 tons need three-phase. The motors run cooler, last longer, and draw significantly less current.
Multiple Heavy EquipmentWhen you operate several high-power machines simultaneously, three-phase distributes the load evenly across phases, preventing voltage drops and equipment damage.
Cost-Benefit BreakpointIf your continuous load exceeds 7-10 kW, three-phase typically pays for itself within 2-4 years through reduced electricity bills and cheaper cabling.
Real-World Cost Comparison
Installation Cost Analysis
| Cost Factor | Single-Phase | Three-Phase | Difference |
|---|---|---|---|
| Utility Connection | $800-$1,500 | $2,500-$5,000 | Higher |
| Cable (100m, 10kW) | $450 | $290 | $160 saved |
| Main Panel | $300-$600 | $800-$1,400 | Higher |
| Installation Labor | $500-$1,000 | $1,200-$2,000 | More complex |
| Total Initial Cost | $2,050-$3,550 | $4,790-$8,690 | $2,740-$5,140 |
Operating Cost Over 5 Years (10 kW continuous load)
Single-Phase Annual Costs:
- Power losses: 116.6W × 24h × 365d = 1,021 kWh wasted
- At $0.15/kWh = $153/year in losses
- Cable heat damage risk = potential $500+ repairs
Three-Phase Annual Costs:
- Power losses: 38.4W × 24h × 365d = 336 kWh wasted
- At $0.15/kWh = $50/year in losses
- Balanced load = minimal maintenance

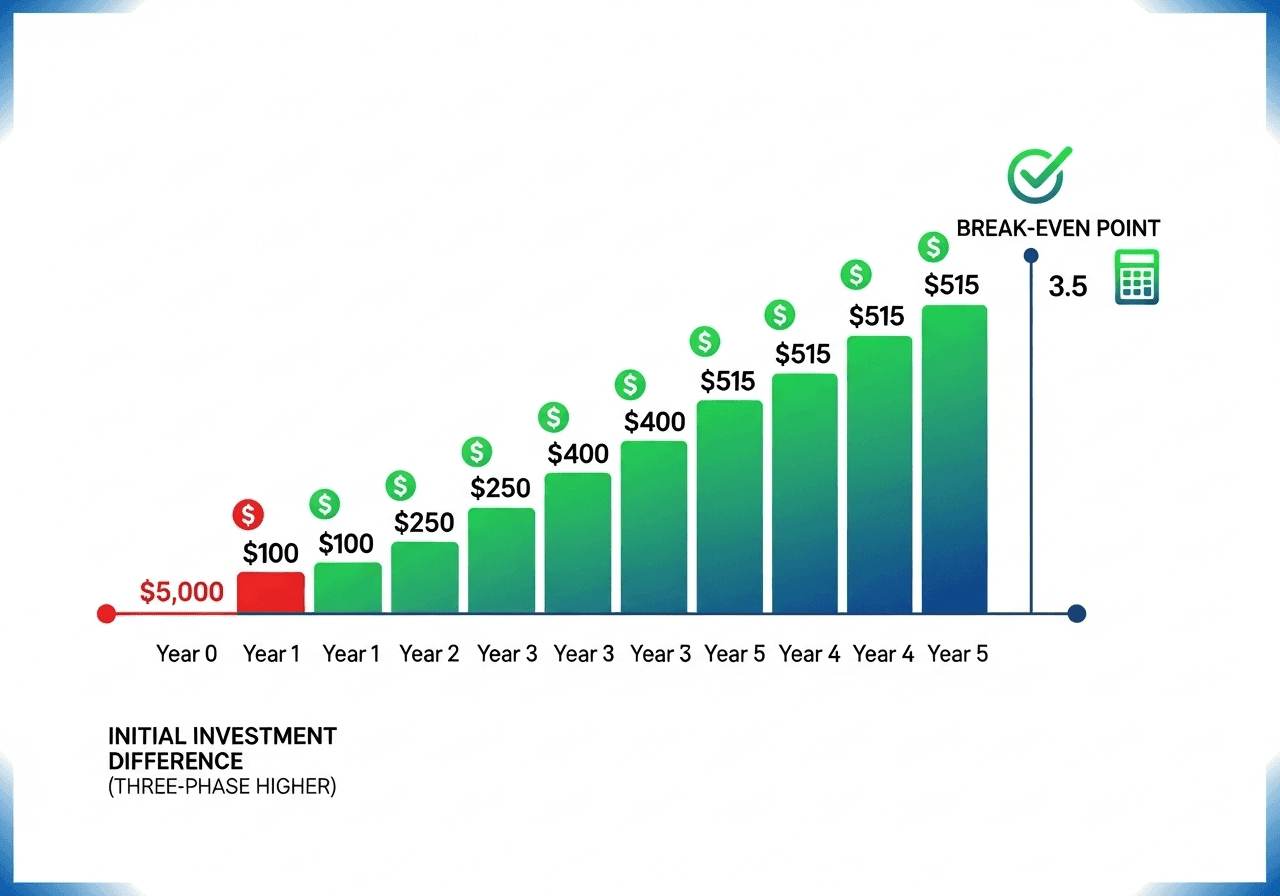

Five-Year Operating Savings: $515
The break-even point? Typically 3-4 years for medium loads, faster for heavy industrial applications.
Common Mistakes When Comparing Power Systems
Mistake #1: Ignoring Cable Sizing
Most people compare voltages and currents but forget about cable costs. Doubling the current requires four times the copper due to I²R losses. A single-phase 10mm² cable costs $4.50/meter while three-phase 2.5mm² cables cost $2.90/meter total for three conductors.
Mistake #2: Not Accounting for Future Expansion
You install single-phase today for a 5 kW load. Next year you want to add a 4 kW compressor. Now you're rewiring everything. Planning for three-phase from the start saves rewiring costs.
Mistake #3: Overlooking Power Factor
Poor power factor (below 0.85) makes single-phase systems even less efficient. Three-phase systems naturally maintain better power factor, reducing utility penalties in commercial settings.
Mistake #4: Comparing Unlike Voltages
Don't compare 120V single-phase to 480V three-phase directly. Use equivalent voltage classes: 230V single vs. 400V three-phase, or 240V single vs. 208V three-phase for fair comparisons.
Advanced Calculator Features Explained
Power Factor Adjustment
Power factor (PF) represents how efficiently your equipment uses electricity. Resistive loads like heaters have PF = 1.0. Motors and transformers typically range from 0.7-0.95.
Why it matters: Low power factor increases current draw without doing useful work. Our calculator lets you adjust PF from 0.1 to 1.0, showing exactly how reactive power affects your system.
Conductor Resistance Input
Real-world cables have resistance that varies by:
- Cable material (copper vs. aluminum)
- Wire gauge/cross-section
- Temperature
- Cable length
Typical values:
- 2.5mm² copper: 0.0074 Ω/meter
- 10mm² copper: 0.00185 Ω/meter
The calculator defaults to 0.05Ω total circuit resistance but allows adjustment for your specific installation.
Voltage Selection Options
Choose from global standards:
- 120V/240V – North American residential
- 230V – UK, Australia, EU residential
- 208V – US commercial three-phase
- 400V – EU industrial standard
- 415V – Australia, UK commercial
- 480V – US heavy industrial
Interactive Results Chart
The visual comparison instantly shows:
- Bar 1: Single-phase current magnitude
- Bar 2: Three-phase per-phase current
- Bar 3: Single-phase power losses
- Bar 4: Three-phase total power losses
Hover over bars to see exact values. The chart scales automatically to your input values.

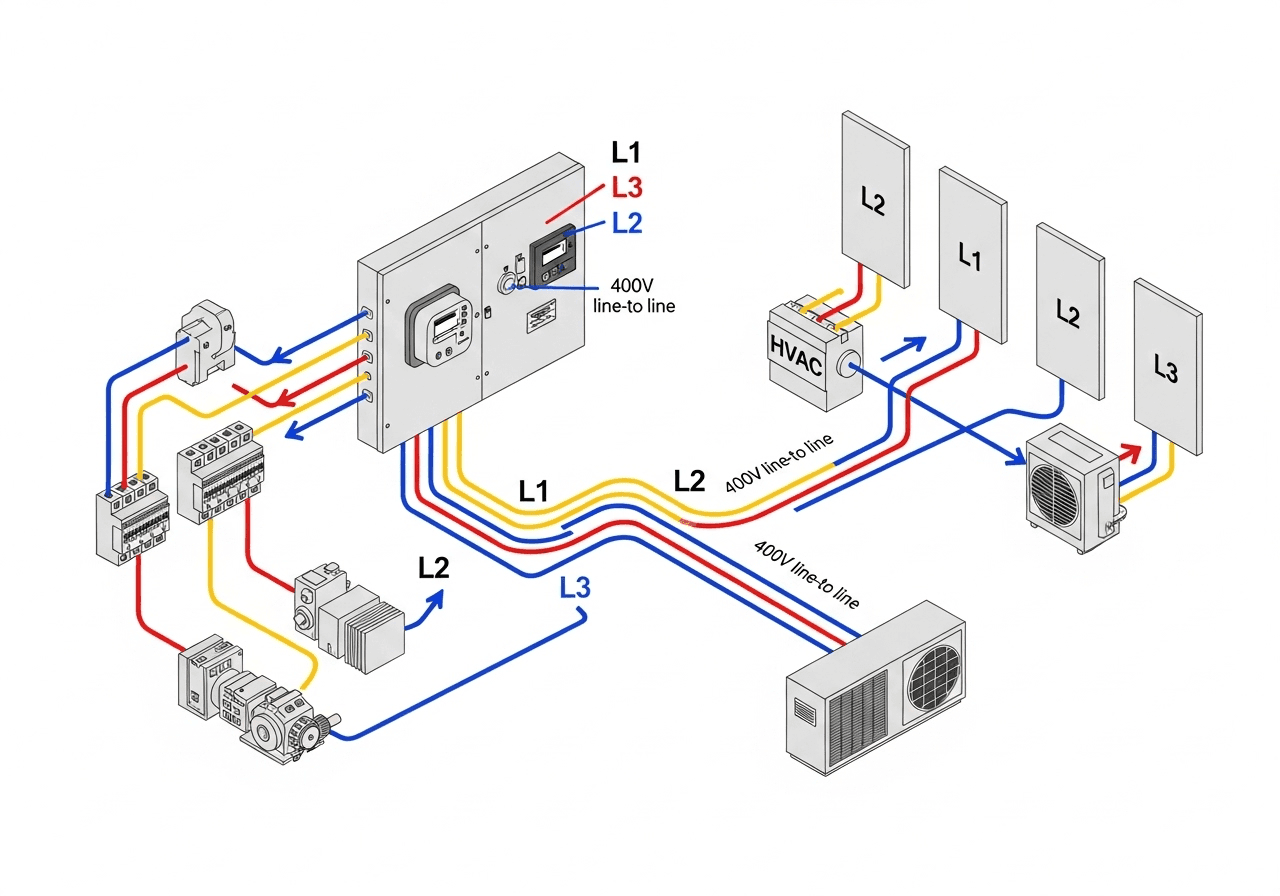

Practical Applications by Industry
Manufacturing & Workshops
Scenario: CNC machine shop running multiple motors simultaneously.
Three-phase benefits:
- Motors start smoothly without voltage dips
- Balanced load prevents phase voltage imbalance
- 40-60% reduction in distribution losses
- Smaller circuit breakers and switchgear
Typical savings: $2,000-$5,000 annually in a 50 kW facility.
Commercial Kitchens & Restaurants
Scenario: Restaurant with large ovens, mixers, and refrigeration.
Three-phase advantages:
- Heavy-duty equipment runs reliably
- Lower operating temperatures in electrical panels
- Reduced risk of nuisance tripping
- Better power quality for sensitive electronics
ROI timeline: 18-36 months for full-service restaurants.
Data Centers & Server Rooms
Scenario: 100+ server racks with UPS systems.
Why three-phase dominates:
- UPS systems operate more efficiently
- Redundancy across three phases improves reliability
- 30-40% smaller cable infrastructure
- Better thermal management
Critical benefit: Higher uptime and lower cooling costs.
Agricultural Operations
Scenario: Farm with grain dryers, irrigation pumps, and processing equipment.
Three-phase makes sense because:
- Large motors (5+ HP) need three-phase for efficiency
- Long cable runs benefit from lower current
- Reduced voltage drop across farm distances
- Better surge protection for expensive equipment
Step-by-Step Guide: Using the Calculator
Getting Started (30 Seconds)
Step 1: Enter your total load in kilowatts. Include all equipment that runs simultaneously. For a workshop with a 3 kW compressor, 2 kW welder, and 1.5 kW grinder, enter 6.5 kW.
Step 2: Select voltage from the dropdown. Choose your local standard – 230V for residential, 400V or 415V for commercial three-phase.
Step 3: Input power factor. Use 0.9 as default for mixed motor loads. Use 1.0 for pure resistive loads like heaters.
Step 4: Enter conductor resistance. Leave at 0.05Ω for typical 50-meter runs, or calculate your specific value.
Interpreting Results (What the Numbers Mean)
Current Readings:
- If single-phase shows 43.5A and three-phase shows 14.5A/phase, you're drawing three times more current on single-phase
- This directly translates to cable sizing and cost
Loss Calculations:
- Power losses appear in watts
- Multiply by hours of operation and electricity cost for annual waste
- Example: 100W loss × 8 hours/day × 250 days × $0.15/kWh = $30/year wasted
Efficiency Notes:The calculator provides context-specific recommendations based on your inputs. Pay attention to these suggestions for optimal system design.
Optimizing Your Results
Try These Scenarios:
- Voltage Impact: Keep power constant, change voltage from 230V to 400V. Watch current drop dramatically.
- Power Factor Effect: Reduce PF from 0.95 to 0.80. See how poor power factor forces higher current even without more real power.
- Cable Resistance: Increase resistance from 0.05Ω to 0.15Ω (longer cable run). Observe how losses scale with I².
- Load Scaling: Double your load. Notice losses quadruple (I²R relationship).
Electrical Safety Considerations
Installation Requirements
Never attempt electrical work without proper qualifications. Both single-phase and three-phase systems require:
- Licensed electrician for installation
- Permits from local authorities
- Inspection and approval before energizing
- Compliance with national codes (NEC, IEC, AS/NZS, CEC)
Three-Phase Specific Hazards
Three-phase systems carry unique risks:
Higher Voltage Between Phases
- Phase-to-neutral: 230V (typical)
- Phase-to-phase: 400V (√3 × 230V)
- More dangerous shock potential
Rotation DirectionThree-phase motors rotate based on phase sequence. Reversed phases spin motors backward, potentially damaging equipment or causing injury.
Load BalancingUnbalanced loads create neutral current, overheating neutral conductors. Professional load balancing prevents this dangerous condition.
Protection Devices Required
| Device | Single-Phase | Three-Phase | Purpose |
|---|---|---|---|
| MCB/MCCB | 1 or 2-pole | 3 or 4-pole | Overcurrent protection |
| RCD/GFCI | 30mA recommended | 30mA per phase | Shock protection |
| Surge Protection | Type 2 SPD | Type 2 SPD (3-pole) | Transient protection |
| Isolator Switch | Required | Required | Safe maintenance |
Frequently Asked Questions
What is the main difference between single-phase and three-phase power?
Single-phase power delivers electricity through one alternating current wave using two wires, while three-phase uses three synchronized waves through three (or four) wires. Three-phase provides more consistent power delivery and draws 42% less current per wire for the same load, making it more efficient for heavy machinery and industrial applications.
Can I convert single-phase to three-phase?
Yes, but it requires either a phase converter ($800-$3,000 for rotary converters) or a Variable Frequency Drive (VFD) ($400-$2,000) to electronically generate three-phase from single-phase. However, utility three-phase connection is more efficient and reliable. Alternatively, you can request three-phase service from your utility, which costs $2,500-$8,000 depending on distance and infrastructure.
Why does three-phase power reduce electrical losses?
Three-phase power reduces losses through lower current draw per conductor. Since power losses follow the I²R formula (current squared times resistance), reducing current by 42% decreases losses by approximately 67%. Additionally, three-phase systems balance loads across phases, preventing overheating and maintaining stable voltage across the installation.
How much does three-phase installation cost compared to single-phase?
Three-phase installation costs $2,500-$8,000 more initially for utility connection and equipment. However, you save on cable costs (smaller gauge wire) and operating expenses (lower losses). For continuous loads above 10 kW, three-phase typically pays for itself within 3-4 years through reduced electricity bills and maintenance costs.
Which voltage is better: 230V single-phase or 400V three-phase?
For loads below 5 kW, 230V single-phase is sufficient and cost-effective. Above 7-10 kW continuous load, 400V three-phase becomes more efficient due to lower current requirements, smaller cables, and reduced power losses. The choice depends on your specific power needs, equipment requirements, and local utility infrastructure availability.
Can residential homes use three-phase power?
Yes, but it's uncommon and typically unnecessary for standard residential loads. Homes with extensive workshops, large HVAC systems, commercial kitchens, or EV charging stations may benefit from three-phase. However, utility connection fees ($3,000-$8,000) and panel upgrades make it practical only when continuous loads exceed 15-20 kW or when running multiple large motors.
How do I calculate if three-phase will save me money?
Use this formula: Annual Savings = (Single-phase losses - Three-phase losses) × Operating hours × Electricity rate. Calculate losses using I²R for your specific conductor resistance and current. Compare annual savings to additional installation costs to find payback period. Our calculator automates this process, showing exact current and loss comparisons instantly.
What happens if one phase fails in a three-phase system?
Single-phasing (one phase failure) causes remaining phases to carry excess current, potentially damaging motors and equipment. Three-phase motors won't start and may overheat if running. Modern installations include phase-failure protection relays that automatically disconnect power when phase loss is detected, preventing equipment damage and safety hazards.
Conclusion: Making the Right Power Choice
Choosing between single-phase and three-phase power isn't just about technical specifications – it's about matching your electrical system to your actual needs and budget.
Here's what we covered:
Three-phase power delivers 42% less current per wire, cutting power losses by up to 67% for the same load. This translates to smaller cables, lower electricity bills, and longer equipment life. However, it costs $2,500-$8,000 more initially.
Single-phase works perfectly for residential applications and small commercial loads below 5-7 kW. It's simpler, cheaper to install, and adequate for most everyday needs.
Use our free calculator above to compare your specific situation. Enter your actual load, voltage, and power factor to see real numbers for your installation. The visual comparison makes the efficiency difference crystal clear.
Take action now:
- Calculate your current or planned power requirements
- Use the comparison tool to see actual current and loss values
- Consult with a licensed electrician for installation assessment
- Request utility quotes for three-phase connection if beneficial
Remember: electrical work requires professional expertise. Never attempt installation without proper qualifications and permits.
Ready to optimize your power system? Start with the calculator at the top of this page. Understanding your numbers is the first step toward lower energy costs and better system reliability.
